MOTOR CARRIER ASSY (48 6515) (72 2320) (72 651300101 - 01555) (84 6514)

Запчасти Bobcat SOIL CONDITIONER MOTOR CARRIER ASSY (48 6515) (72 2320) (72 651300101 - 01555) (84 6514) Loader

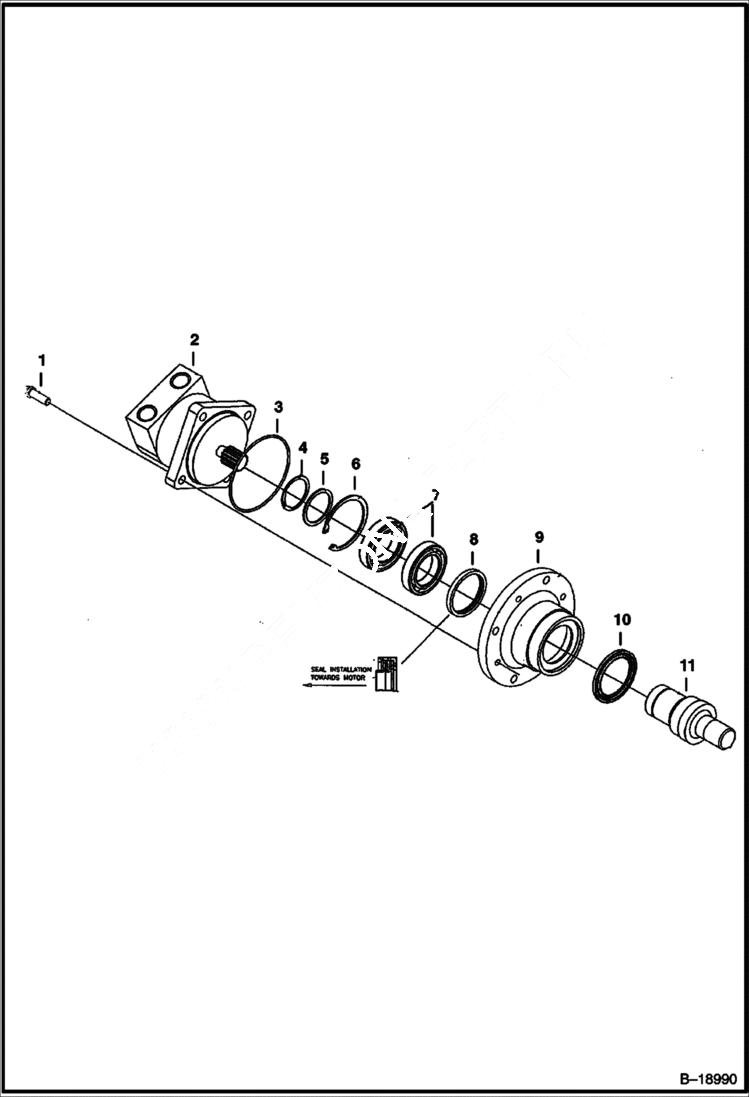

Схема запчастей Bobcat SOIL CONDITIONER - MOTOR CARRIER ASSY (48 6515) (72 2320) (72 651300101 - 01555) (84 6514) Loader
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

93G824

BOLT

2

MOTOR ASSY See Illustration MOTOR/ B18991B See Illustration MOTOR/ B18991

3

58K160

O-RING 10 Was 25K030508B - B

4

6672266

SNAP RING

5

6906127

WASHER thrust

6

711022

SNAP RING

7

6672748

BEARING

8

6676913

SEAL, OIL

9

6905675

CARRIER, MOTOR

10

6676915

SEAL

11

6905671

SHAFT, DRIVE
