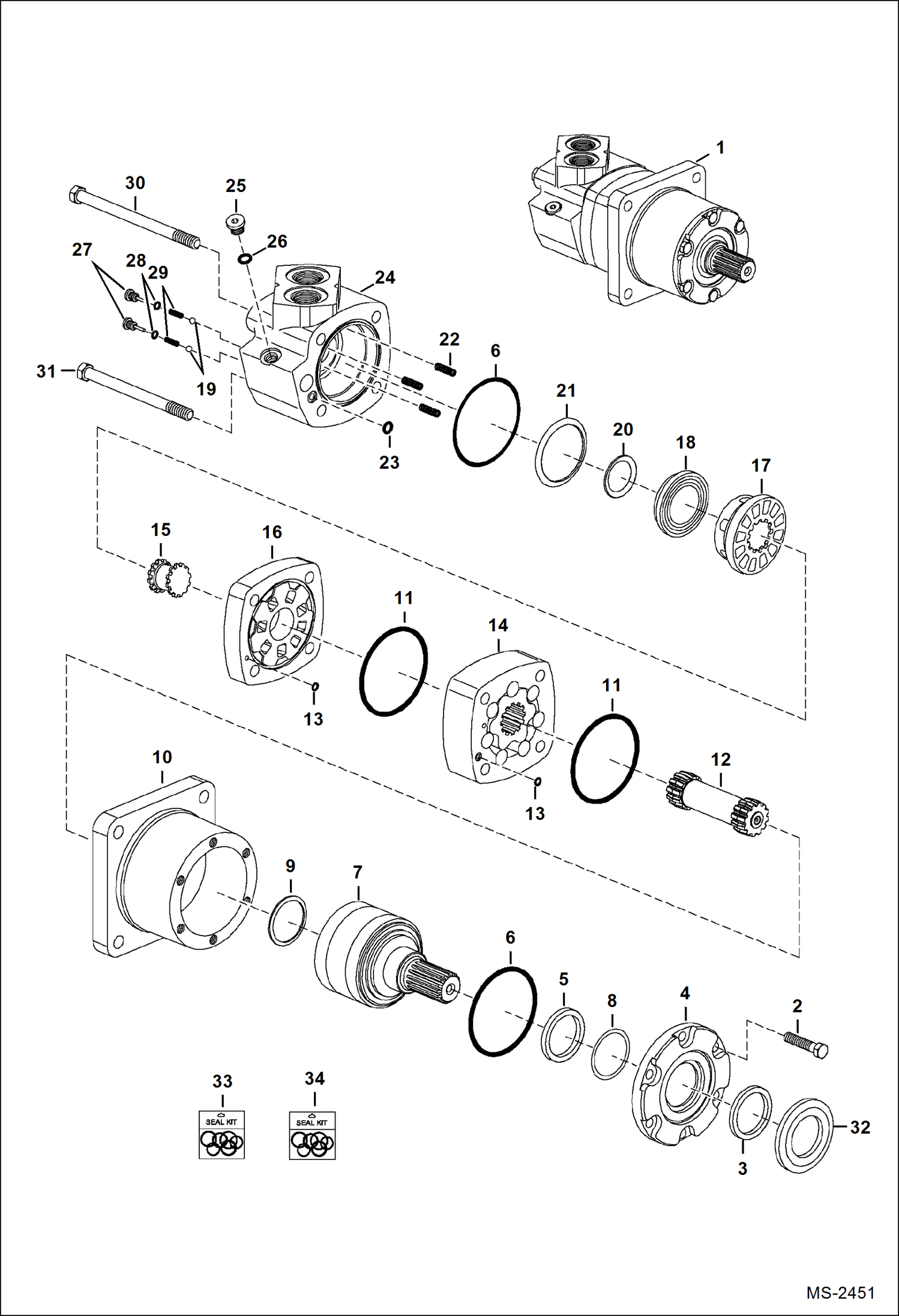

Запчасти Bobcat SOIL CONDITIONER MOTOR (72 A6TD) (84 A6TG) Loader

1

6689968

MOTOR W/Ref. 2-32 - Eaton 113-1148-006

2

6664809

SCREW

3

6664810

SEAL

4

6677397

RETAINER

5

6665556

SEAL

6

58K44

O RING 10

7

6693530

SHAFT

8

6665557

RING, BACK-UP

9

6664815

SEAL, OIL

10

6693531

HOUSING

11

6513524

O'RING

12

6513515

DRIVE

13

6667332

SEAL

14

6513516

GEROLER

15

6513518

DRIVE

16

6661809

PLATE valve

17

6513519

VALVE

18

6658757

RING balancing

19

10J8

BALL

20

6513529

SEAL inner

21

SEAL NLA - outer - Was 6513520 - A

22

6190121

SPRING

23

25K20010

O RING 10

24

6664820

HOUSING

25

1992104

PLUG W/Ref. 26

26

6664822

O-RING

27

1992107

PLUG check assy - W/Ref. 28

28

79K8

O RING 10 Was 91F000006B - A

29

6190116

SPRING

30

6661217

BOLT

31

6661218

BOLT

32

6693532

GUARD, SEAL slinger seal - 1.5'' ID x 3'' OD

33

6664823

SEAL KIT rear - W/Ref. 6, 11, 13, 20, 21, 23, 26 & 28

34

6664824

SEAL KIT shaft - W/Ref. 3, 5, 6 & 9
