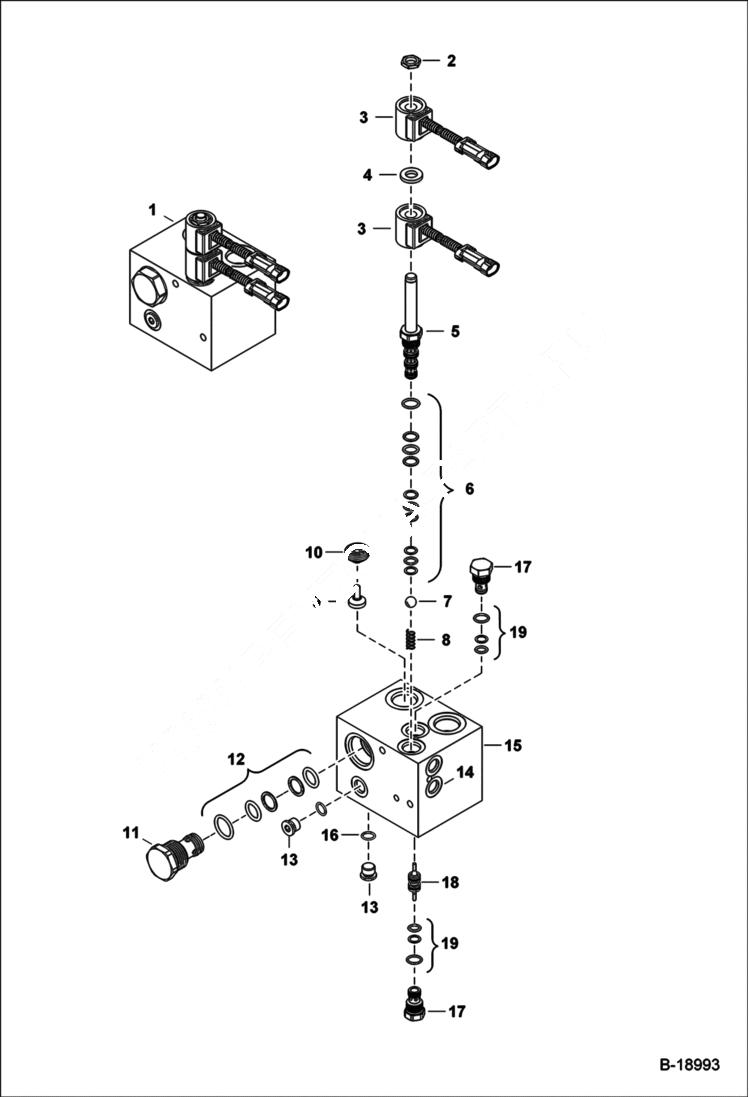

Запчасти Bobcat SOIL CONDITIONER CONTROL VALVE (72 2320) (84 6514) Loader

1

6676592

VALVE, CONTROL Ref. 2-19

2

7D8

NUT 5

3

6671025

COIL

4

6678711

SPACER Was 6674445 - B

5

6677153

SOLENOID

6

6672756

KIT, SEAL

7

6676066

BALL

8

6676067

SPRING

9

6673831

BALL

10

6673832

RETAINER

11

6673834

VALVE logic

12

6673997

SEAL KIT Was 6673836 - A

13

6669620

PLUG

14

PLUG NLA - Was 6673833 - A

15

6677505

BLOCK

16

95K6

O'RING

17

6669728

VALVE, CHECK Was 6673991 - A

18

6673990

PISTON, VALVE double acting sealed - Was 6664028 - A

19

6672515

KIT, SEAL Was 6670635 - A
