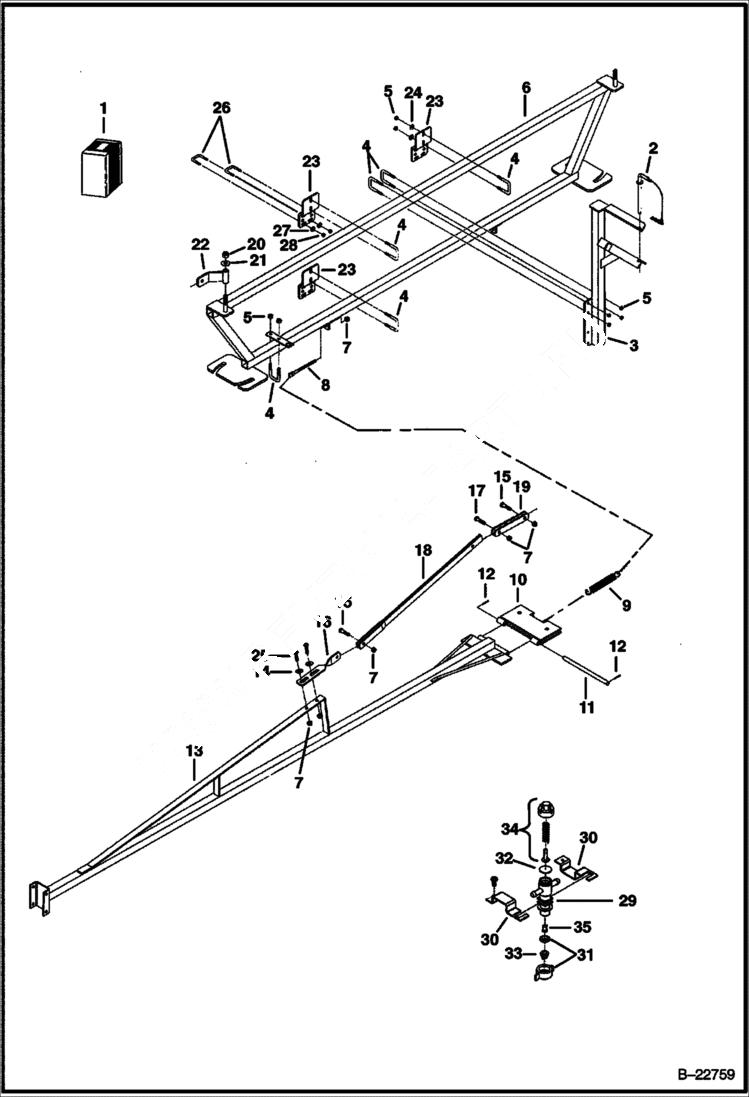

Запчасти Bobcat SPRAYER SPRAYER (21 ft Boom Assy & Nozzles) (75 gal 0054) (80 gal A7F2) Loader

1

6685009

FRAME, SPRAYER Ref. 2-35

2

6685670

PIN

3

6685671

BRACKET

4

6685672

U-BOLT

5

59D5

NUT 5

6

6685673

FRAME

7

59D6

NUT

8

6685674

BOLT tension

9

6685675

SPRING

10

6685676

HINGE

11

6685677

PIN

12

1F416

PIN

13

6685678

BOOM

14

25E17

WASHER 5

15

17C620

BOLT

16

6685679

MOUNT

17

17C624

BOLT 5

18

6685680

LINKAGE

19

6685681

LINKAGE

20

59D8

NUT 5

21

25E21

WASHER 5

22

6685682

ARM

23

6685683

PLATE

24

25E15

WASHER

25

17C616

BOLT 5

26

6685463

U-BOLT

27

25E13

WASHER 5

28

59D4

NUT 5

29

6685684

NOZZLE elbow

29

6685685

NOZZLE tee

30

6685686

CLAMP

31

6685687

CAP

32

6685688

DIAPHRAGM

33

7104250

NOZZLE, SPRAY Was 6655690 - A

34

6685689

END CAP ASSY

35

6655689

SCREEN
