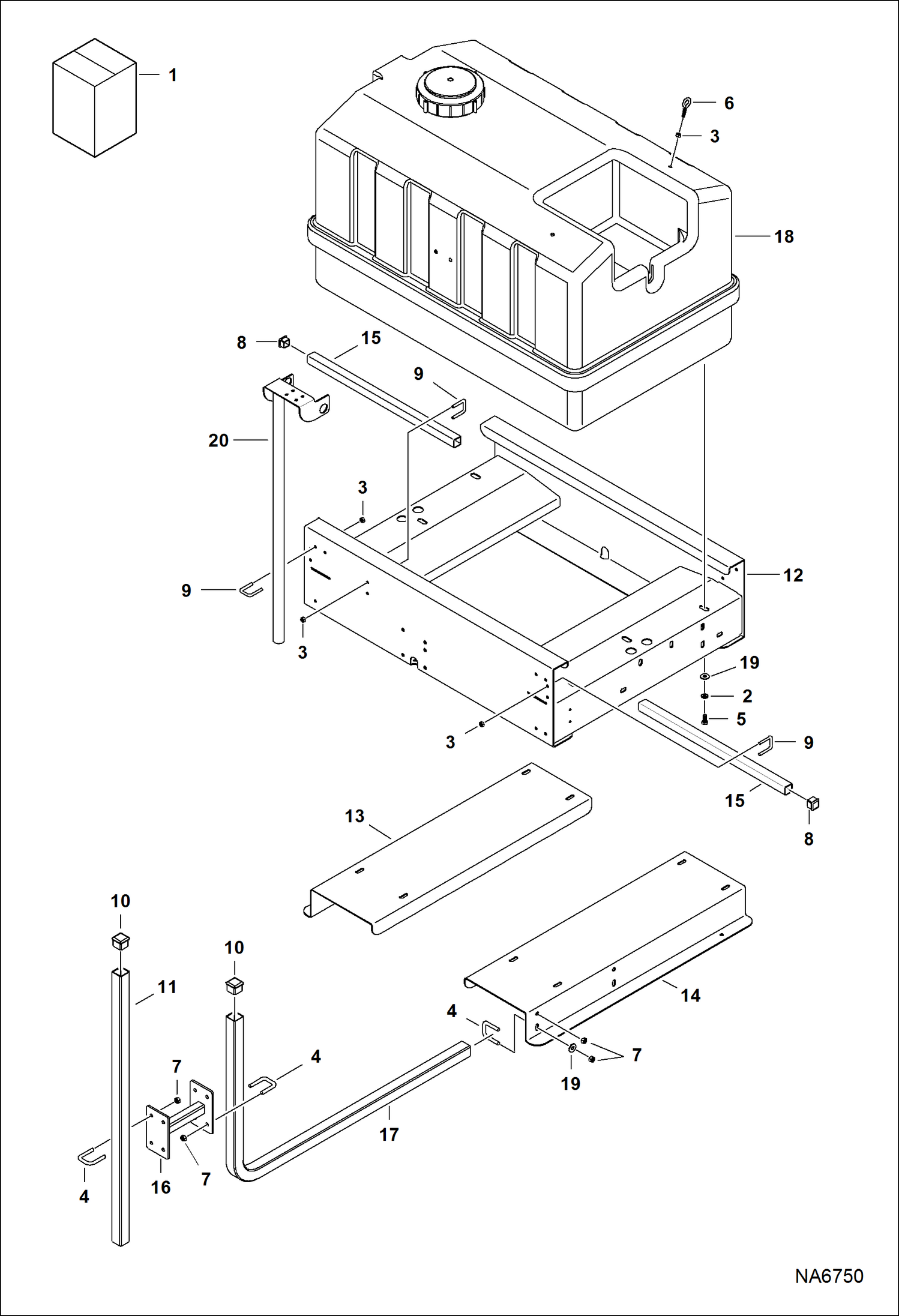

Запчасти Bobcat SPRAYER SPRAYER (Tank & Mounting Frame) (60 gal B133) Универсальный мини-грузовик

1

SPRAYER, 60 GAL See Illustration SPRAYER/ NA6752 - Ref. 2-19 & 27-32 - SALES #7222447 - Also includes Ref. 2-20 on this page

2

4E5

WASHER

3

59D4

NUT 5

4

6685672

U-BOLT

5

17C512

BOLT 5

6

7002761

BOLT, EYE

7

59D5

NUT 5

8

7025226

CAP, END

9

6685463

U-BOLT

10

6686822

CAP, END

11

6686828

MOUNT

12

7002759

FRAME, SPRAYER

13

7002993

CHANNEL

14

7002994

CHANNEL

15

7025219

BRACKET, MOUNTING

16

7025221

BRACKET, MOUNTING

17

7025222

BRACKET, MOUNTING

18

7025224

TANK, SPRAYER 60 GAL See Illustration SPRAYER/ NA6771

19

25E15

WASHER

20

7025223

MOUNT, VALVE
