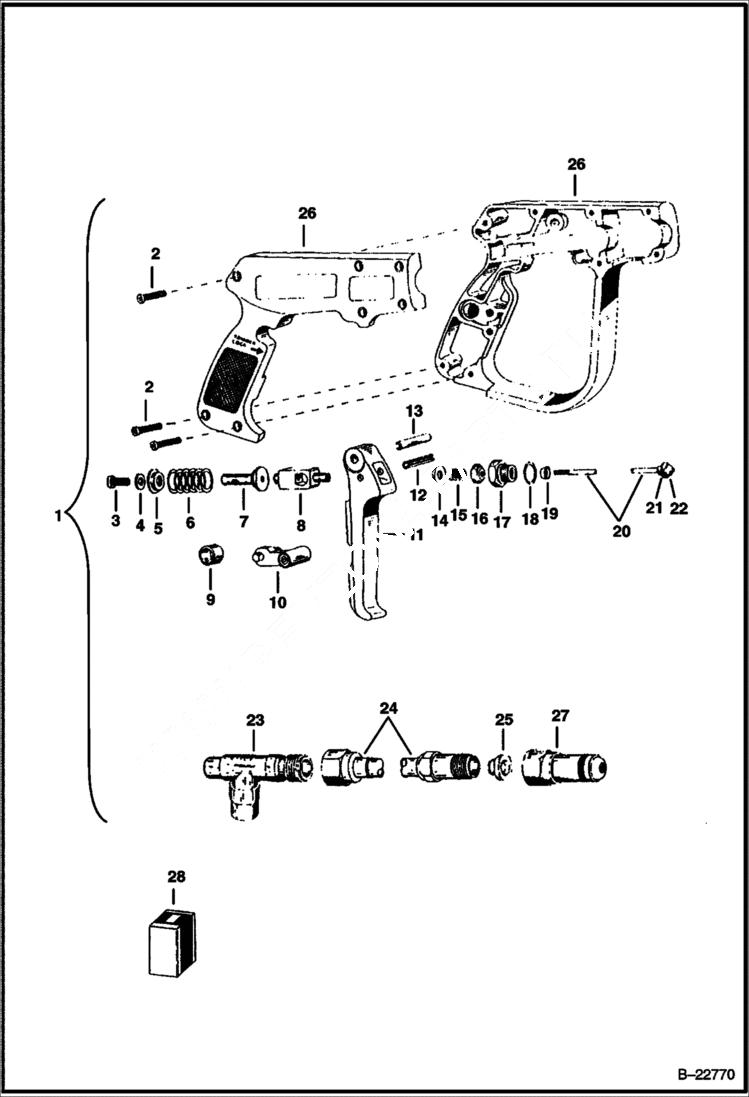

Запчасти Bobcat SPRAYER SPRAYER (Spray Wand) (60 gal B133) Универсальный мини-грузовик

1

6684618

GUN, SPRAY Ref. 2-26

2

SCREW NSS

3

SCREW NSS

4

WASHER NSS

5

RETAINER NSS

6

SPRING NSS

7

GUIDE NSS

8

GUIDE NSS

9

RING NSS

10

LOCK NSS

11

TRIGGER NSS

12

ROLL PIN NSS

13

ROLL PIN NSS

14

BURR NSS - #6

15

SPRING NSS

16

NUT NSS

17

PACKING SCREW NSS

18

GASKET NSS - Order Ref. 28

19

PACKING CUP NSS - Order Ref. 28

20

6685710

STEM 18''

21

GUIDE NUT NSS

22

STEM END NSS - Order Ref. 28

23

INLET BODY NSS

24

6685711

EXTENSION 457,2 mm (18'') wand

25

6685712

SEAT

26

HOUSING NSS

27

6685713

TIP adjustable - Order separately - not included W/Ref. 1

28

6685709

REPAIR KIT Ref. 18, 19, 22 & 25
