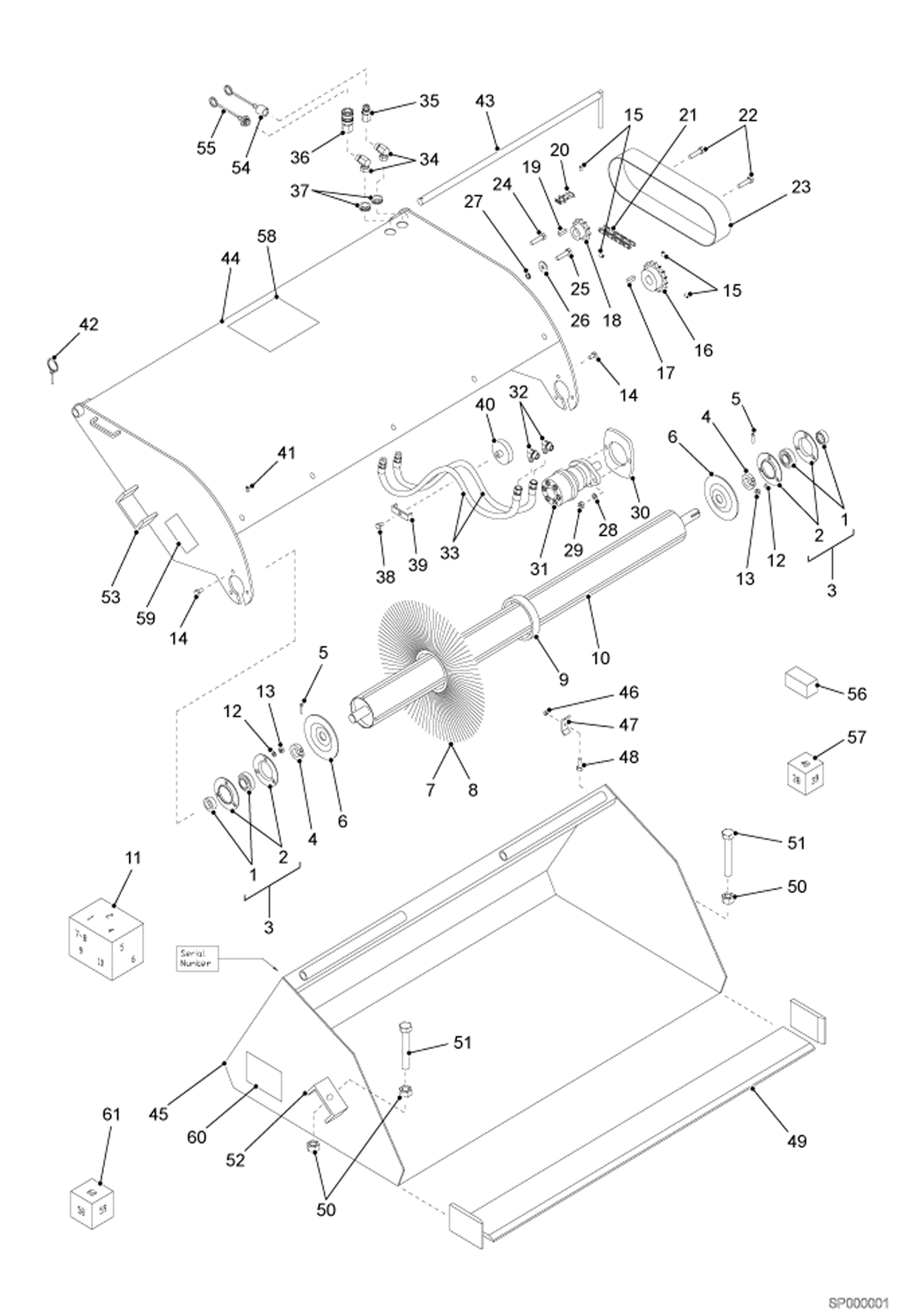

Запчасти Bobcat SWEEPER Broom Bin 44 (1100 mm) (Europe Only) Loader

1

6663904

Eccentric + Bearing

2

6664375

Bearing Plate

3

6664376

Bearing Kit

4

6672058

Clamping Ring

5

6672059

Socket Nut

6

6682587

Locking Flange

7

6647969

Brush Ring PPN

8

6649125

Bush Ring Steel

9

6647966

Intermediate Ring

10

6680943

Axle Core 44'' (1100mm)

11

6680990

Brush Core Kit (1-10) 44'' (1100mm)

12

6647959

Grower

13

6647957

Nut

14

6647961

Bolt

15

6647929

Socket Nut

16

6647923

Gear

17

6647930

Cotter

18

6647926

Gear

19

6643540

Cotter

20

6657390

Chain Lock

21

6647920

Chain + Lock

22

6692061

Bolt

23

6692134

Chain Guard

24

6647937

Bolt

25

6672062

Bolt

26

6672063

Washer

27

6672064

Locking Washer

28

6647939

Grower

29

6647940

Nut

30

6647935

Motor Flange

31

6647932

Seal Kit Hydromotor

32

6647984

Nipple

33

6647980

Flexible Hose

34

6692223

Nipple

35

6647974

Quick-Release Coupeling Male

36

6647977

Quick-Release Coupeling Female

37

6692264

Lead-Through Rubber

38

6695054

Bolt

39

6648006

Flexible Clamp

40

6692213

Magnet

41

6672068

Threaded Nipple

42

6647997

Transfer Pin

43

6647991

Hinge Pin 44'' (1100mm)

44

6692122

Brush Cap 44'' (1100mm)

45

6691743

Bin 1100

46

6648007

Wing Nut

47

6692140

Flexible Clamp

48

6692063

Bolt (welded)

49

6692036

Blade Set (Bottom And Side Blade) 44'' (1100mm)

50

6672057

Adjusting Nut

51

6672056

Adjusting Bolt

52

6688494

Adjusting Slot (Welded)

53

6688495

Adjusting Piece (Welded)

54

Dust Cap Female NLA

55

Dust Cap Male NLA

56

6692274

Seal Kit Hydromotor

57

6647990

GEARCASE

58

6688496

Decal

59

6688497

Decal

60

6688498

Decal Broom Bucket

61

6681927

Decal Kit
