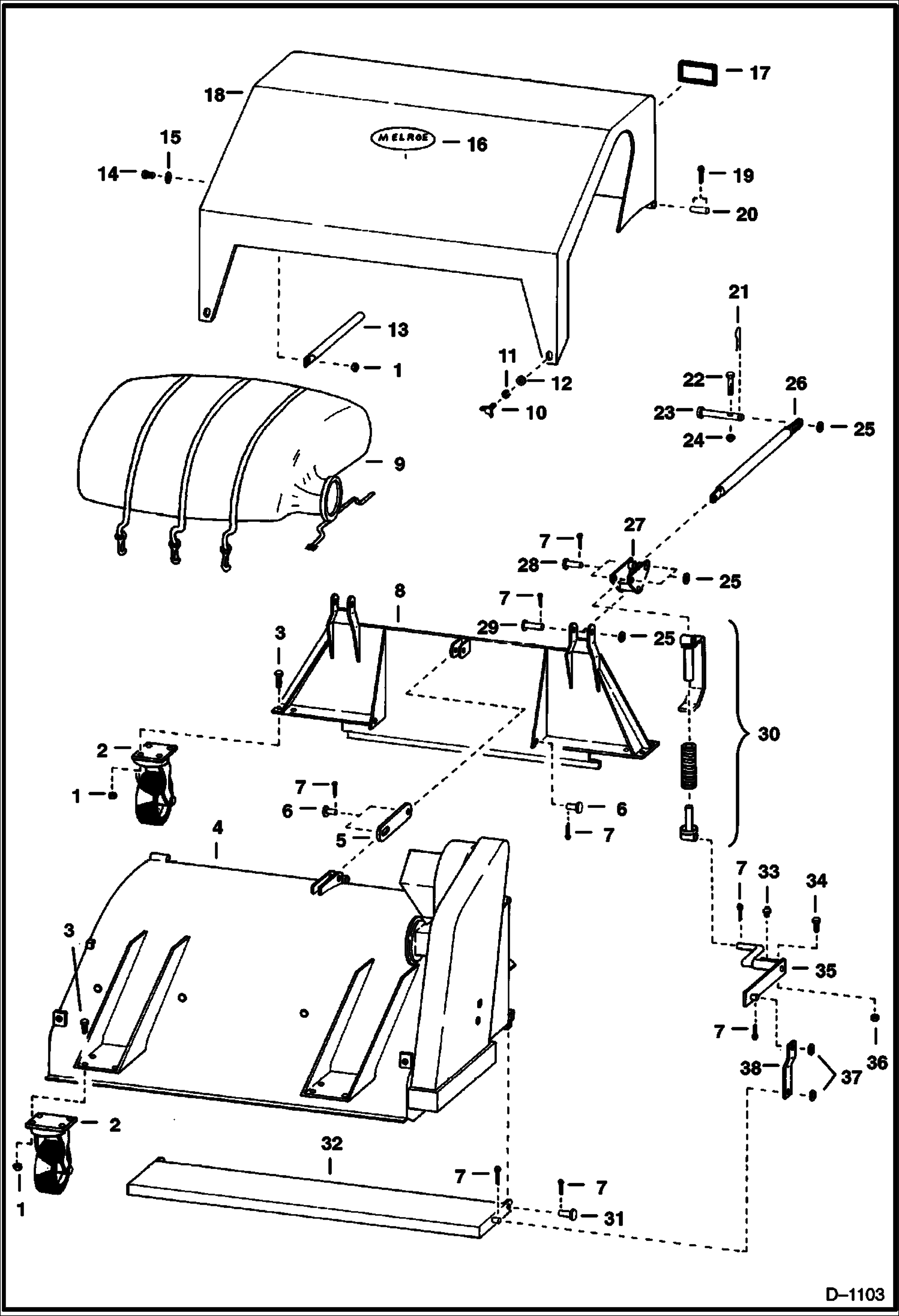

Запчасти Bobcat SWEEPER SWEEPER (Main Frame) (M-662) Loader

1

81D8

NUT

2

WHEEL See Illustration SWEEPER/ C1096B caster

3

17C820

BOLT

4

6520592

MAIN FRAME

5

6520731

LINK

6

6520741

HINGE PIN

7

1F620

PIN COTTE

8

6520586

FRAME

9

BAG NLA - filter - W/retainer straps - Was 6520786 - A

10

6508266

THUMB SCREW

11

4E8

WASHER

12

25E17

WASHER 5

13

6520748

ROD hood raise lock

14

17C816

BOLT

15

25E21

WASHER 5

16

DECAL NLA

17

6520660

SHIELD rubber u-channel

18

6520590

HOOD

19

1F308

PIN, COTTER

20

6520742

PIN Ends of Hood

20

6520743

PIN Center of Hood

21

6515499

PIN

22

17C540

BOLT

23

6520739

HINGE PIN

24

91D5

NUT 5 Was 81D000005B - A

25

WASHER NLA - Was 784183B - A

26

6520607

ROD

27

6520608

BRACKET

28

6520750

HINGE PIN

29

6520729

PIN

30

6520609

SPRING assy

31

6520730

PIN

32

6520582

DOOR

33

10H35

FITTING, GREASE 10

34

17C620

BOLT

35

6520583

ARM crank - L.H.

35

6520584

ARM crank - R.H.

36

81D6

NUT

37

25E27

WASHER

38

6520740

LINK
