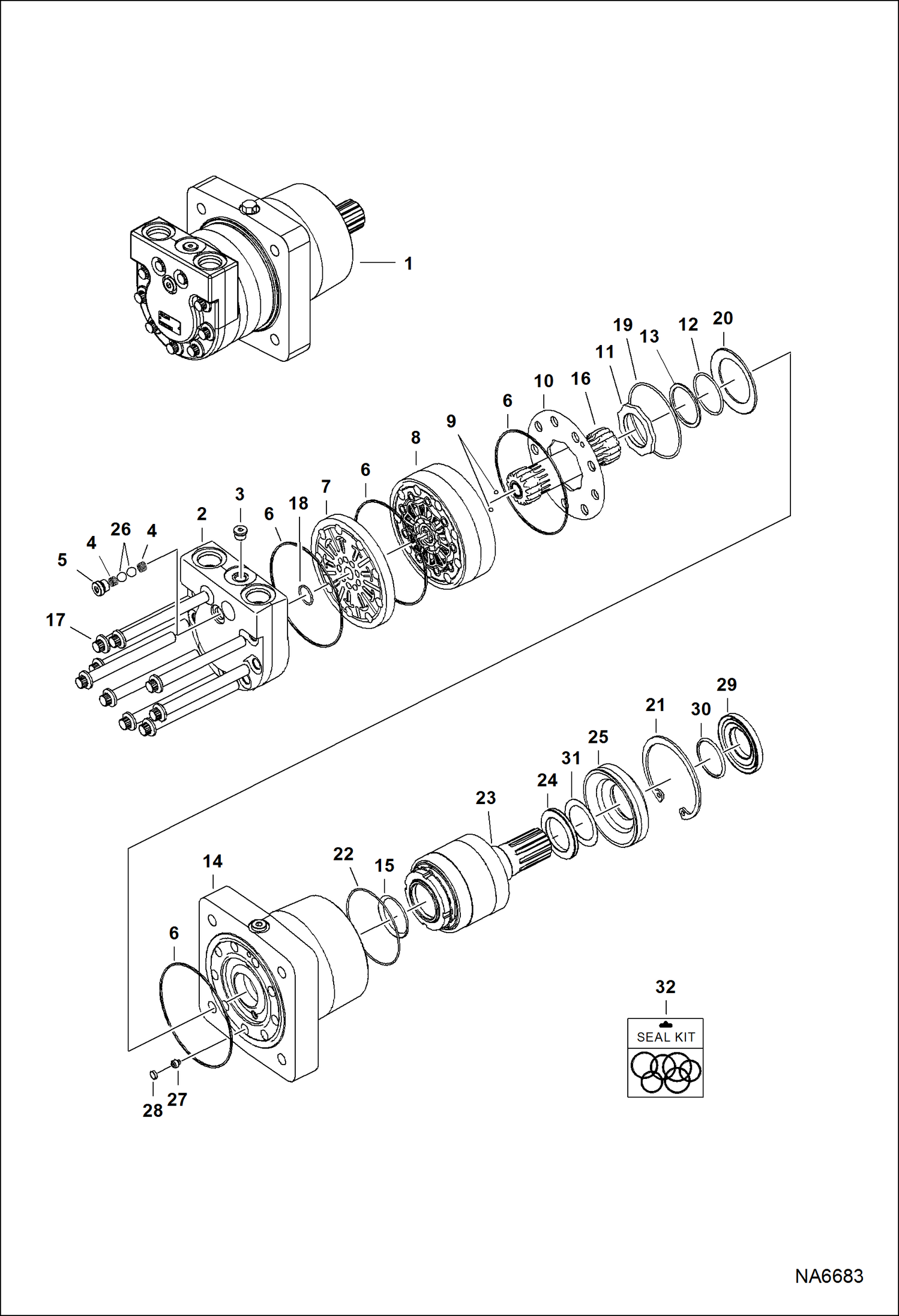

Запчасти Bobcat TILLER TILLER (Hydraulic Motor) (62 055201877 & Above) (76 055102447 & Above) Loader

1

7222337

MOTOR, DRIVE HYD Ref. 2-31 - Model 180-0095-005

2

6689697

HOUSING, MOTOR

3

6668079

PLUG, MOTOR

4

6513533

SPRING Was 6692528 - A

5

6668089

PLUG, MOTOR

6

6678000

SEAL

7

6689698

PLATE

8

7020789

GEROLER

9

6651542

BALL, STEEL

10

6689700

PLATE outer

11

6678004

PLATE inner

12

6682860

O-RING

13

6678006

RING, BACK-UP

14

7024947

HOUSING, BEARING

15

6691564

SEAL

16

7020790

SHAFT, DRIVE

17

6689742

BOLT

18

6669452

O-RING

19

6682897

SEAL

20

6685069

RING,BACK-UP

21

6691337

RING, RETAINING

22

6679818

O-RING

23

7024948

SHAFT, OUTPUT

24

6665556

SEAL

25

7024949

RETAINER, BEARING

26

6664428

BALL, STEEL

27

PLUG, MOTOR NLA - orifice - Was 6850005 - A

28

6850004

SCREEN

29

6693532

GUARD, SEAL

30

6664810

SEAL

31

6665557

RING, BACK-UP

32

7021021

KIT, SEAL Ref. 6, 12, 13, 15, 18, 19, 22, 24 & 29-31
