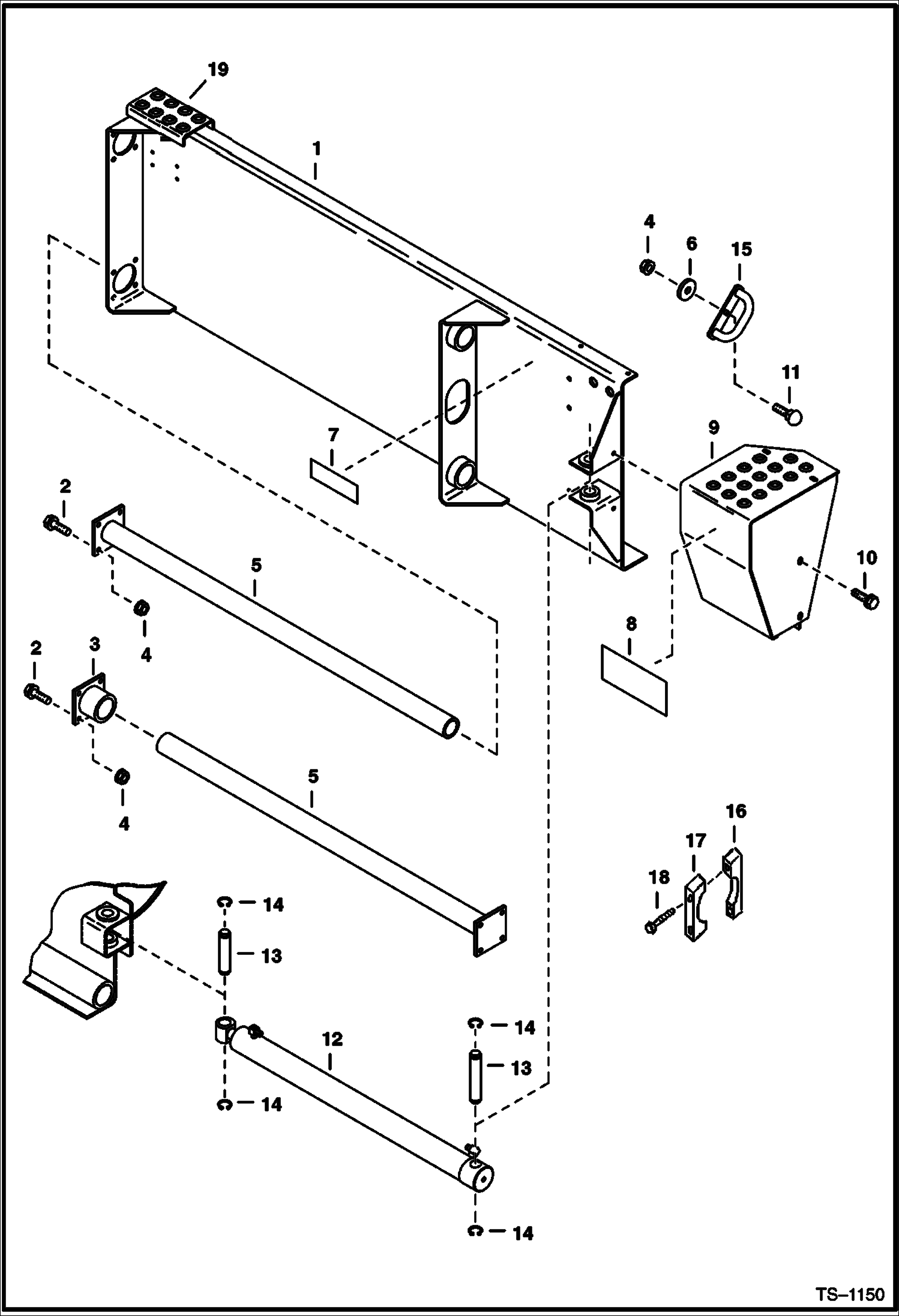

Запчасти Bobcat TRENCHERS TRENCHER (Mounting Frame) (LT203) Loader

1

6704258

FRAME

2

17C620

BOLT

3

6704195

END CAP

4

85D6

NUT, 5

5

6705138

ROD SLIDE

6

872229

WASHER

7

6705603

DECAL selector

8

6567987

DECAL, LOGO BOBCAT AND HEAD

9

6705527

COVER

10

84G3712

BOLT 5

11

37C664

BOLT

12

CYLINDER See Illustration TRENCHER/ TS1147 Use with side shift kit

13

6704191

PIN

14

1320431

RING, SNAP

15

6706160

GUIDE

16

6806949

CLAMP with threaded holes

17

6806950

CLAMP with thru holes

18

17C636

BOLT

19

6905990

STEP
