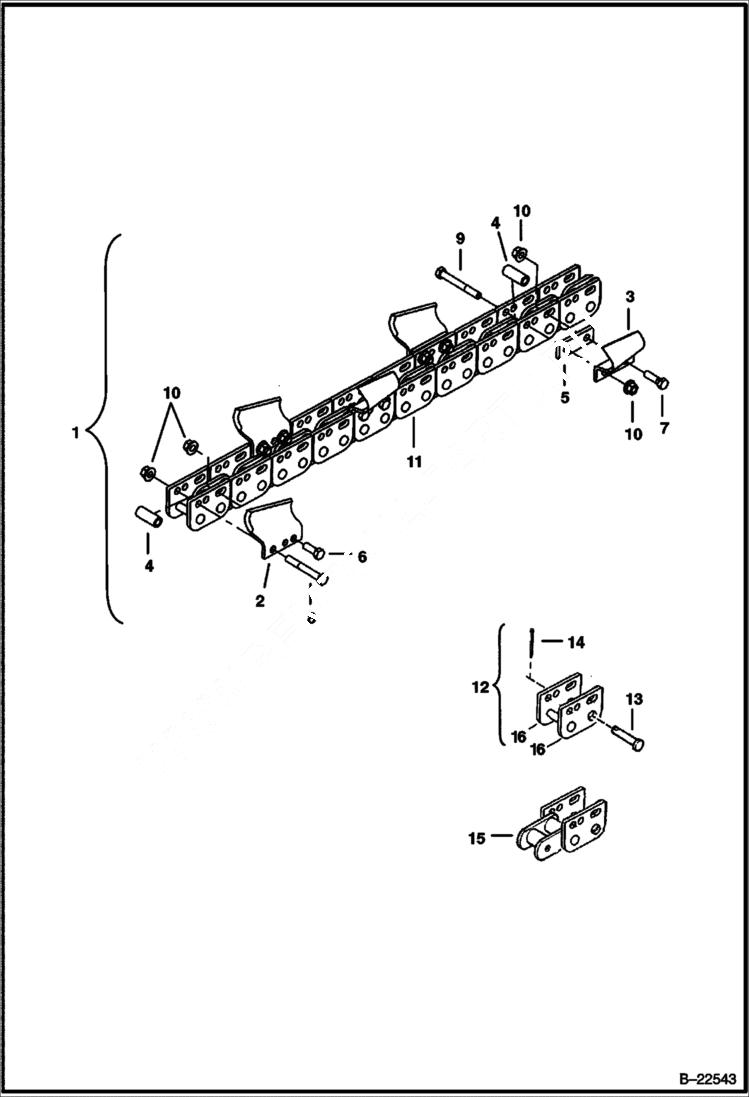

Запчасти Bobcat TRENCHERS TRENCHER (Chain & Tooth Assy) (3 Depth - 6 Wide Cup Teeth in Single Std Pattern) (LT213) Loader

1

KIT SALES #6959335 - Ref. 2-11

2

6655759

TOOTH, TRENCHER CARBIDE RH

3

6655760

TOOTH, TRENCHER CARBIDE LH

4

6701880

BUSHING

5

6713795

SPACER

6

17C616

BOLT 5

7

17C620

BOLT

8

17C644

BOLT

9

17C648

BOLT 5

10

83D6

NUT 5

11

6959303

CHAIN 68 pitch - chain only

12

6685356

KIT, PIN & CONNECTOR W/ (2) each of Ref. 13 & 16

13

6685354

PIN & COTTER ASSY W/Ref. 14

14

6685355

PIN, COTTER

15

6685357

CONNECTOR ASSY

16

PLATE, SIDEBAR NSS
