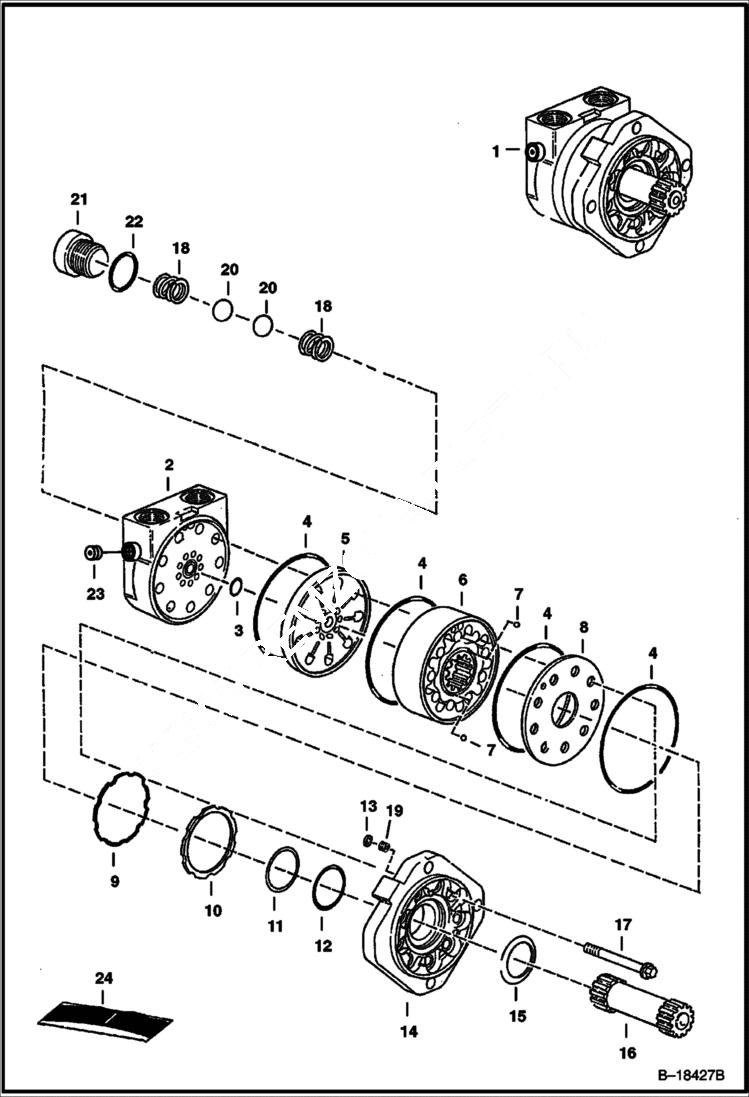

Запчасти Bobcat TRENCHERS TRENCHER (Hydraulic Motor) (LT313) Loader

1

MOTOR See Illustration TRENCHER/ B26152B - NLA - Eaton 161-0061-002 - Order 7116831 motor - Was 6675784 - A

2

HOUSING NLA - Was 6669442 - A

3

6669452

O-RING

4

6669446

O-RING square cut - Was 6673700 - A

5

6669447

PLATE valve

6

6673701

GEROLER

7

6651542

BALL, STEEL

8

6669448

PLATE balance assy

9

6669454

RING backup

10

6669453

SEAL

11

6669450

RING backup

12

6669449

O-RING

13

6850004

SCREEN Was 6673705 - B

14

FLANGE NLA - mounting - Was 6673702 - A

15

6664815

SEAL, OIL face

16

6673703

SHAFT drive

17

6673704

BOLT

18

6513533

SPRING

19

PLUG, MOTOR NLA - orifice - Was 6850005 - A

20

6664428

BALL, STEEL

21

6668089

PLUG, MOTOR W/Ref. 22

22

79K6

O RING 10

23

90K4

PLUG Was 90KN00004B - A

24

6669455

KIT, SEAL Ref. 3, 4, 9-12, 15 & 22
