TRENCHER (Chain Guides) (1219 mm (4)) (LT305)

Запчасти Bobcat TRENCHERS TRENCHER (Chain Guides) (1219 mm (4)) (LT305) Loader

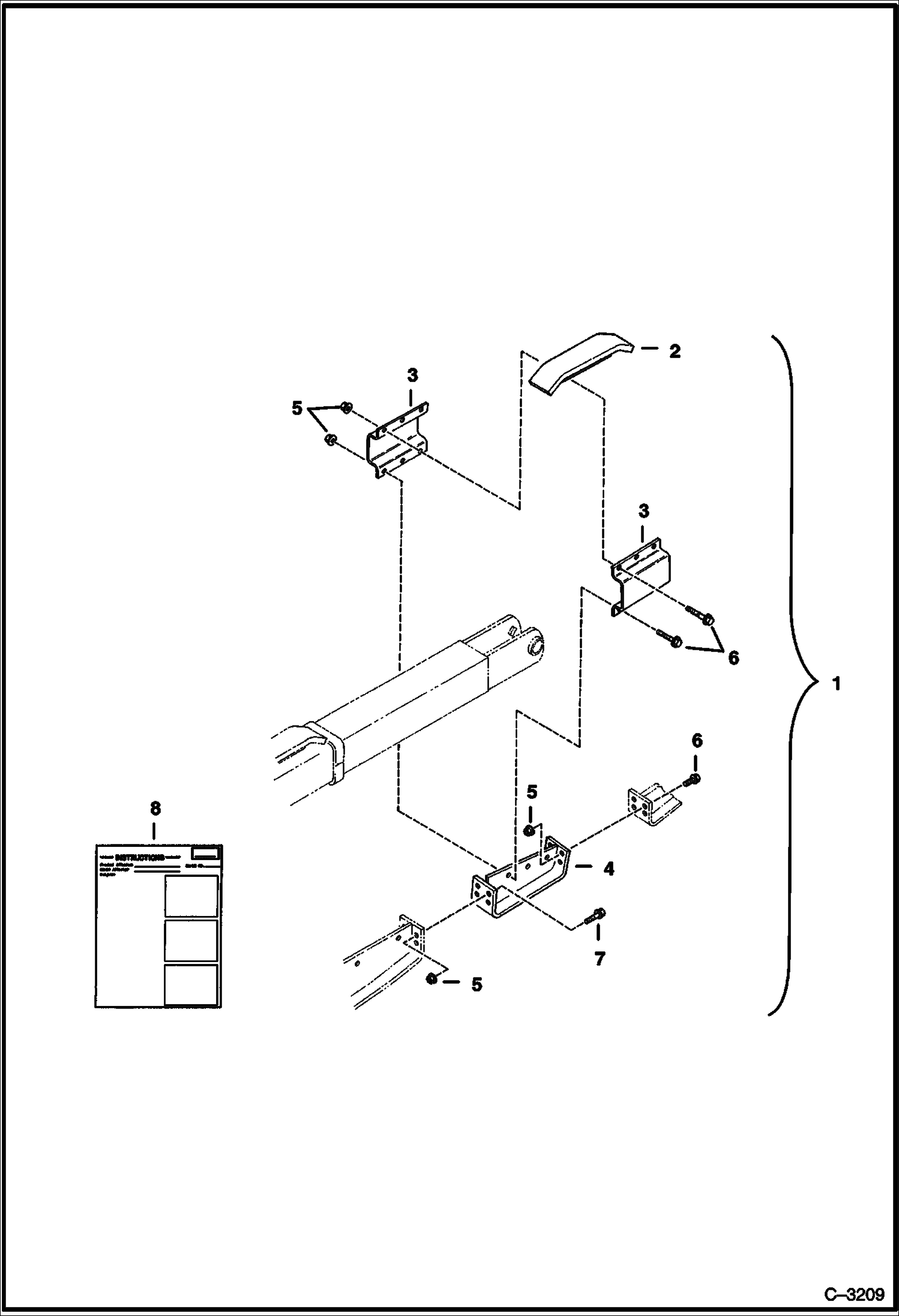

Схема запчастей Bobcat TRENCHERS - TRENCHER (Chain Guides) (1219 mm (4)) (LT305) Loader
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

GUIDE ASSY. NLA - 4 foot (1219,2mm) - Order Components - Ref. 2 - 8

2

6702829

GUIDE upper - Was 6702016 - A

3

6702017

CHANNEL

4

6702004

CHAIN GUIDE 4 ft. (1219,2mm) - Was 6704173 - D

5

83D8

NUT 5

6

31C824

BOLT 10

7

31C828

BOLT

8

6720411

INSTRUCTIONS
