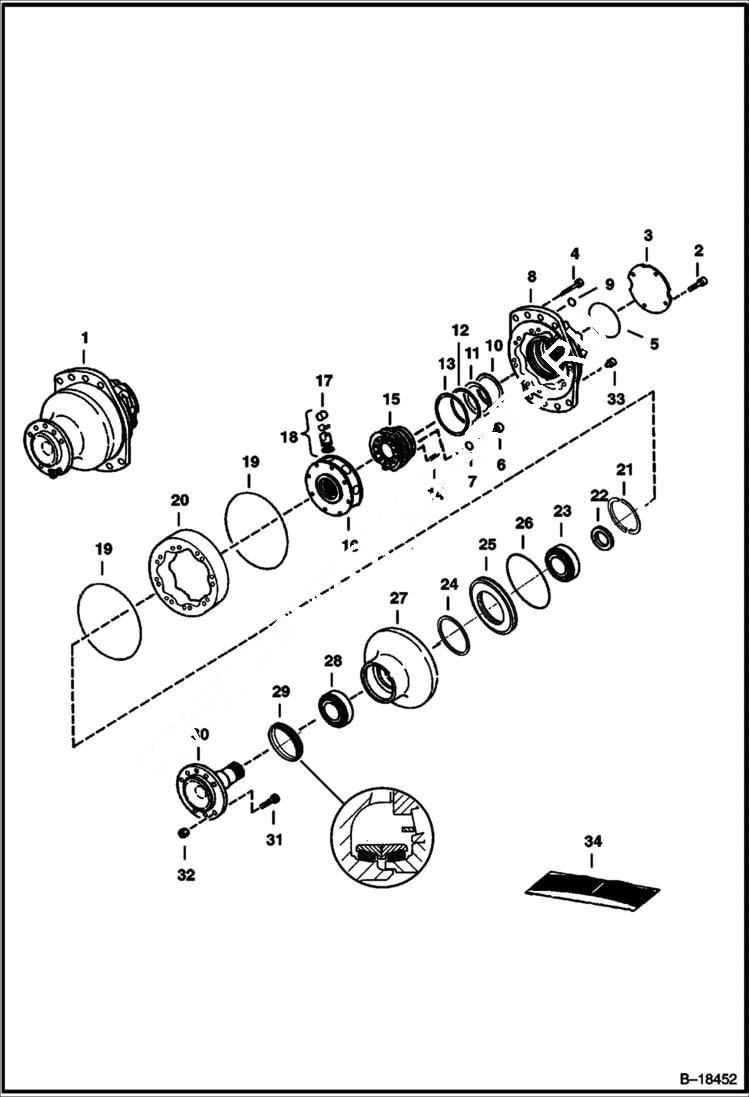

Запчасти Bobcat TRENCHERS TRENCHER (Hydraulic Motor) (LT405 705100101 & Above) Loader

1

MOTOR NLA - Rexroth 5850-001-054 - Order 6674098 - Was 6662316 - A

2

6660043

BOLT

3

6660042

COVER

4

6660041

BOLT

5

6660040

O-RING

6

6660032

PIN

7

6660038

O-RING

8

6660030

REAR HOUSING

9

6660039

O-RING

10

6660037

SEAL

11

6674730

SEAL Was 6660036 - A

12

6674847

SEAL Was 6660035 - A

13

6660034

SEAL

14

6660033

SPRING

15

6660031

VALVE RING

16

CYLINDER BLOCK NSS - Order Ref. 1 - Was 6660024 - A

17

6660025

ROLLER

18

6660026

PISTON ASSY

19

6676597

O-RING square - Was 6660044 - A

20

6660027

CAM

21

6660016

RING, SPLIT

22

WASHER NLA - Was 6660013 - A

23

6660018

BEARING, MOTOR DRIVE

24

6660020

SEAL See Serviceletter Dated 12-12-95

25

6660014

SEAL RING

26

6660015

O-RING

27

6660012

FRONT HOUSING

28

6660017

BEARING

29

6660019

SEAL

30

6674054

SHAFT Was 6660011 - A

31

7020902

STUD Was 6660021 - A

32

6660022

NUT

33

6674017

PLUG includes O-ring

34

6660010

KIT Front Housing - W/Ref. 21 - 30

34

KIT NSS - Rotation Assy. - W/Ref. 16 - 18 - Order Ref. 1 - Was 6660023 - A

34

6660029

KIT Rear Housing - W/Ref. 5 - 15

34

6660788

KIT SEAL W/Ref. 5, 7, 9 - 13, 19, 24 & 26 - Less Ref. 29 - Lip seal in seal kit will not be used - See Serviceletter of 12-12-95
