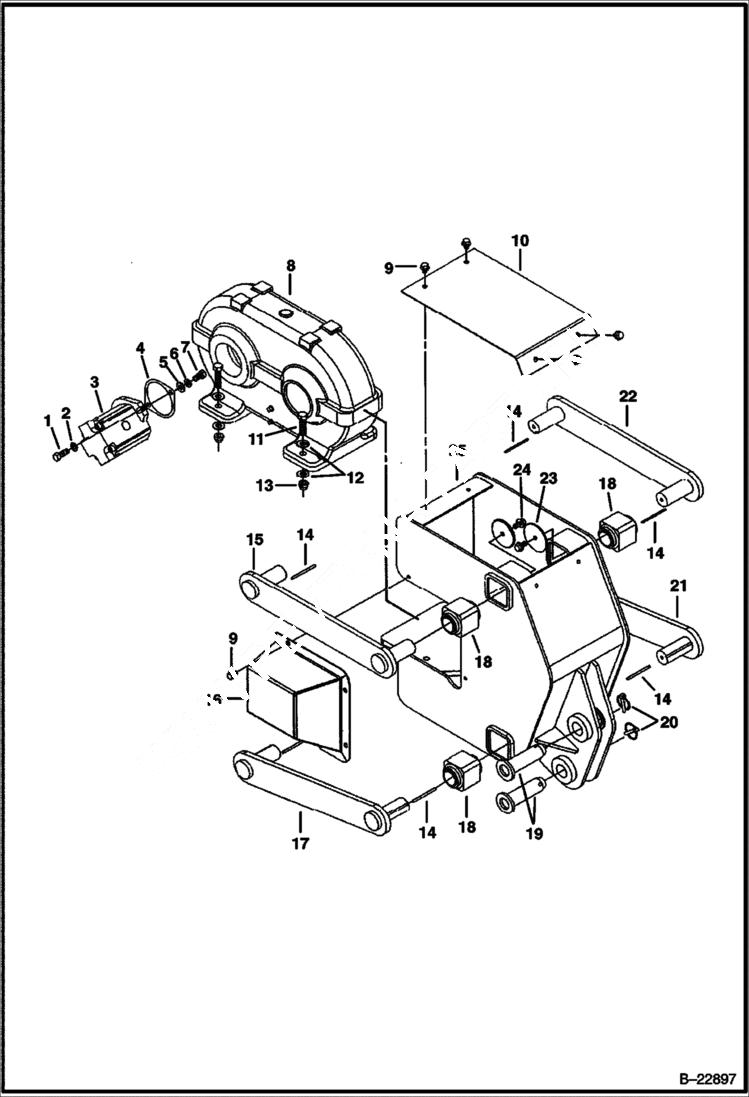

Запчасти Bobcat VIBRATORY PLOW VIBRATORY PLOW - VP12 Main Frame Loader

1

17C620

BOLT

2

4E6

WASHER

3

6685989

MOTOR See Illustration VIBRATORY PLOW - VP12/ B24241

3

6685990

KEY for motor shaft

4

6685991

GASKET

5

25E15

WASHER

6

4E5

WASHER

7

17C508

BOLT

8

6686032

VIBRATOR See Illustration VIBRATORY PLOW/ TS1713A

9

35C608

BOLT

10

6685992

COVER

11

17C832

BOLT

12

27E8

WASHER 10

13

85D8

NUT, 5

14

6685993

KEY

15

6685994

LINK top right

16

6685995

COVER

17

6685996

LINK bottom right

18

6685997

BUSHING

19

6685998

PIN

20

6685999

PIN

21

6686000

LINK bottom left

22

6686001

LINK top left

23

6686002

WASHER

24

6686003

BOLT

25

6686004

FRAME
