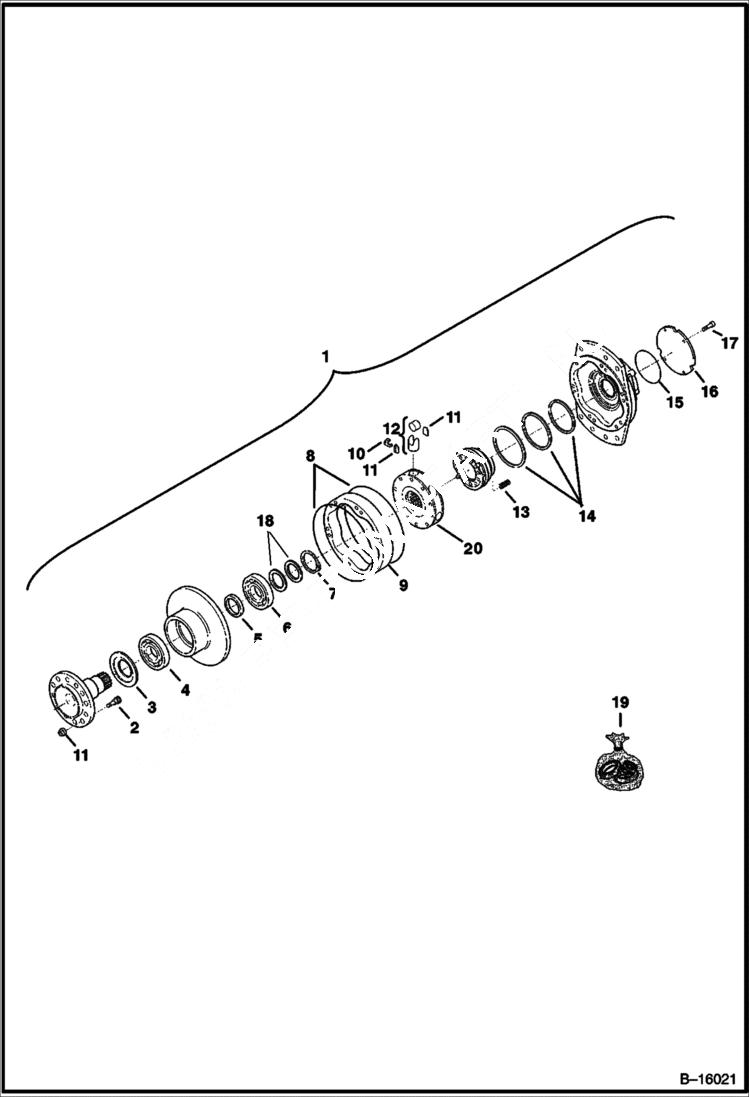

Запчасти Bobcat WHEEL SAWS WHEEL SAW (Motor) (WS18 991800101 & Above) (WS24 991900101 & Above) Loader

1

6678476

MOTOR ASSY WS18 - Ref. 2-18 & 20

1

6678477

MOTOR ASSY WS24 - Ref. 2-18 & 20

1

7010572

GREASE outer bearing grease

2

6678462

BOLT

3

6678463

SEAL

4

6678464

BEARING W/race

5

6678465

SPACER

6

6678466

BEARING W/race

7

6678467

RING retaining

8

6678468

O-RING

9

6678469

CAM WS18

9

6678479

CAM WS24

10

6678470

KIT guide e-clips

11

6678461

NUT

12

6678471

PISTON

13

6676804

SPRING

14

6678472

RING KIT

15

6678473

O-RING

16

6678474

COVER

17

6678475

BOLT

18

7010313

RING, SUPPORT shim

19

6678478

SEAL KIT Ref. 3, 5, 7, 8, 14, 15 & 18

20

7020571

ROTOR WS18 & WS24
