WHISKER BROOM (Hydraulic Angle Kit) (60 A3HU) (2300 Utility Vehicle)

Запчасти Bobcat WHISKER BROOM WHISKER BROOM (Hydraulic Angle Kit) (60 A3HU) (2300 Utility Vehicle) Универсальный мини-грузовик

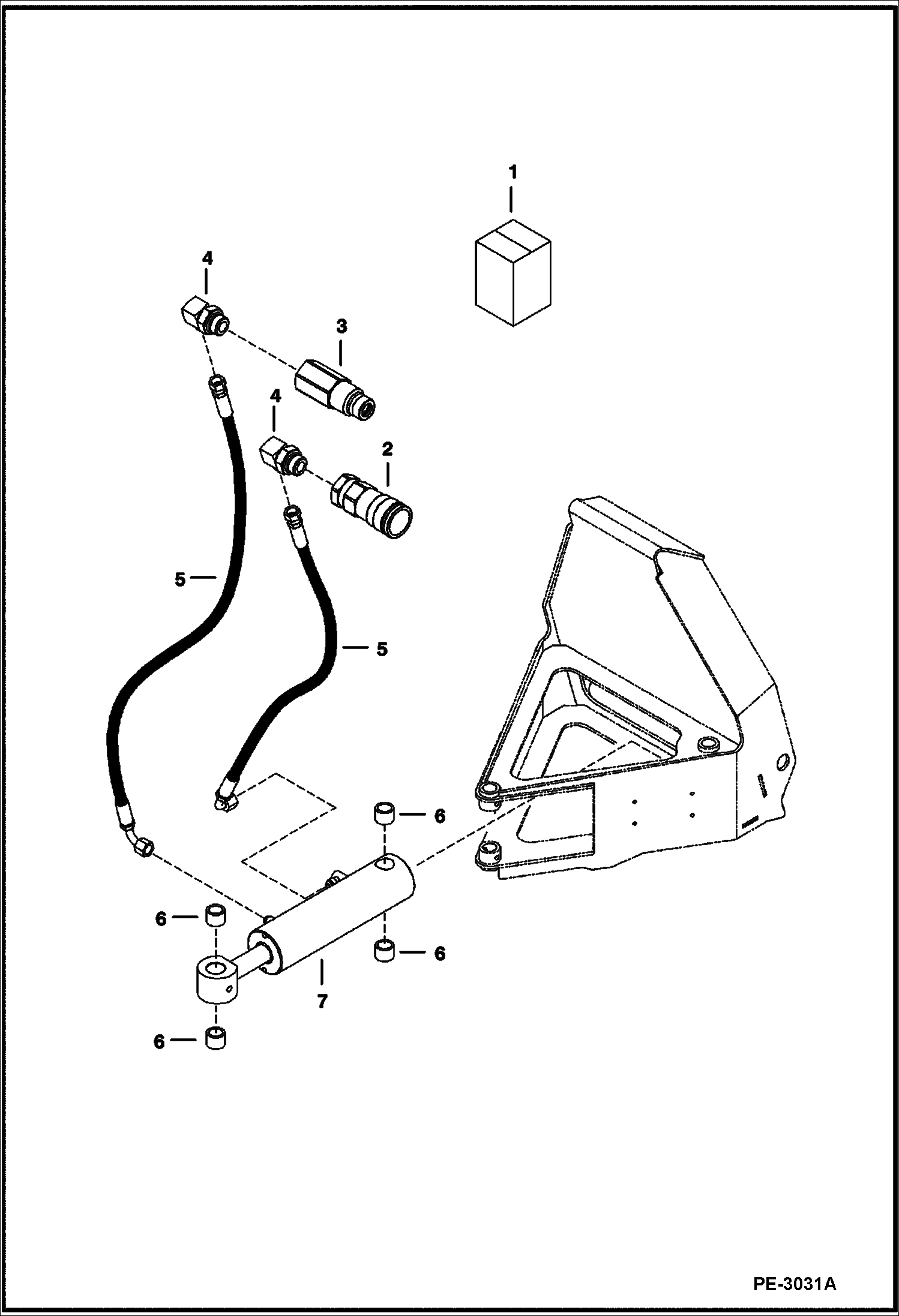

Схема запчастей Bobcat WHISKER BROOM - WHISKER BROOM (Hydraulic Angle Kit) (60 A3HU) (2300 Utility Vehicle) Универсальный мини-грузовик
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KIT SALES #7129850 - Hydraulic Angle - Ref. 2-7 - Can be installed on Snow Blade or Whisker Broom

2

6672960

COUPLER, FF FEMALE straight

3

6674688

COUPLER, FF MALE straight

4

17KB0612

FITTING, HYD ELBOW

5

7113019

HOSE

6

6689113

BEARING

7

6815562

CYLINDER See Illustration WHISKER BROOM/ PE2507A
