BUCKET CYLINDER (5701 11039 & Above)

Запчасти Bobcat B100 BUCKET CYLINDER (5701 11039 & Above) HYDRAULIC SYSTEM

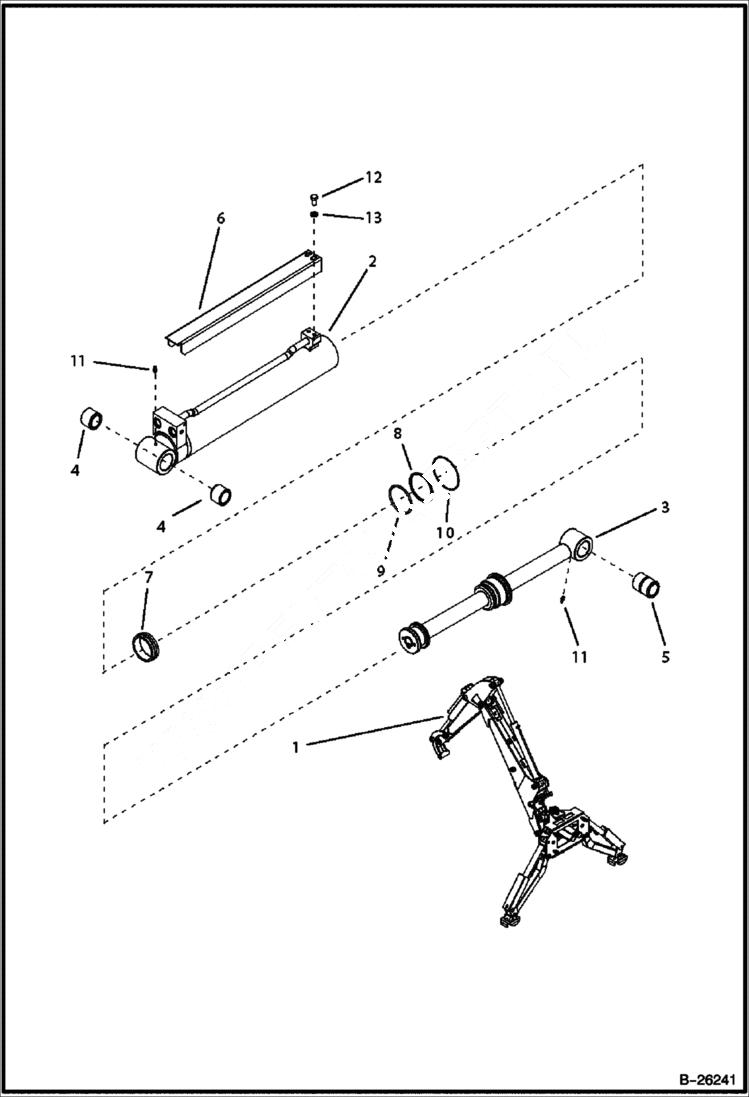

Схема запчастей Bobcat B100 - BUCKET CYLINDER (5701 11039 & Above) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6962684

HYDRAULIC CYLINDER PR63X36X380 ASSY W/Ref. 2-13

2

6960324

HOUSING

3

6962999

PISTON

4

6960182

BUSHING

5

6960179

BUSHING

6

6960323

COVER

7

6960314

SEAL

8

6960317

BACK-UP RING

9

6960318

O-RING

10

6960319

O-RING

11

6962268

GREASE FITTING

11

6962268

GREASE FITTING

12

1CM816

BOLT

13

6964587

WASHER
