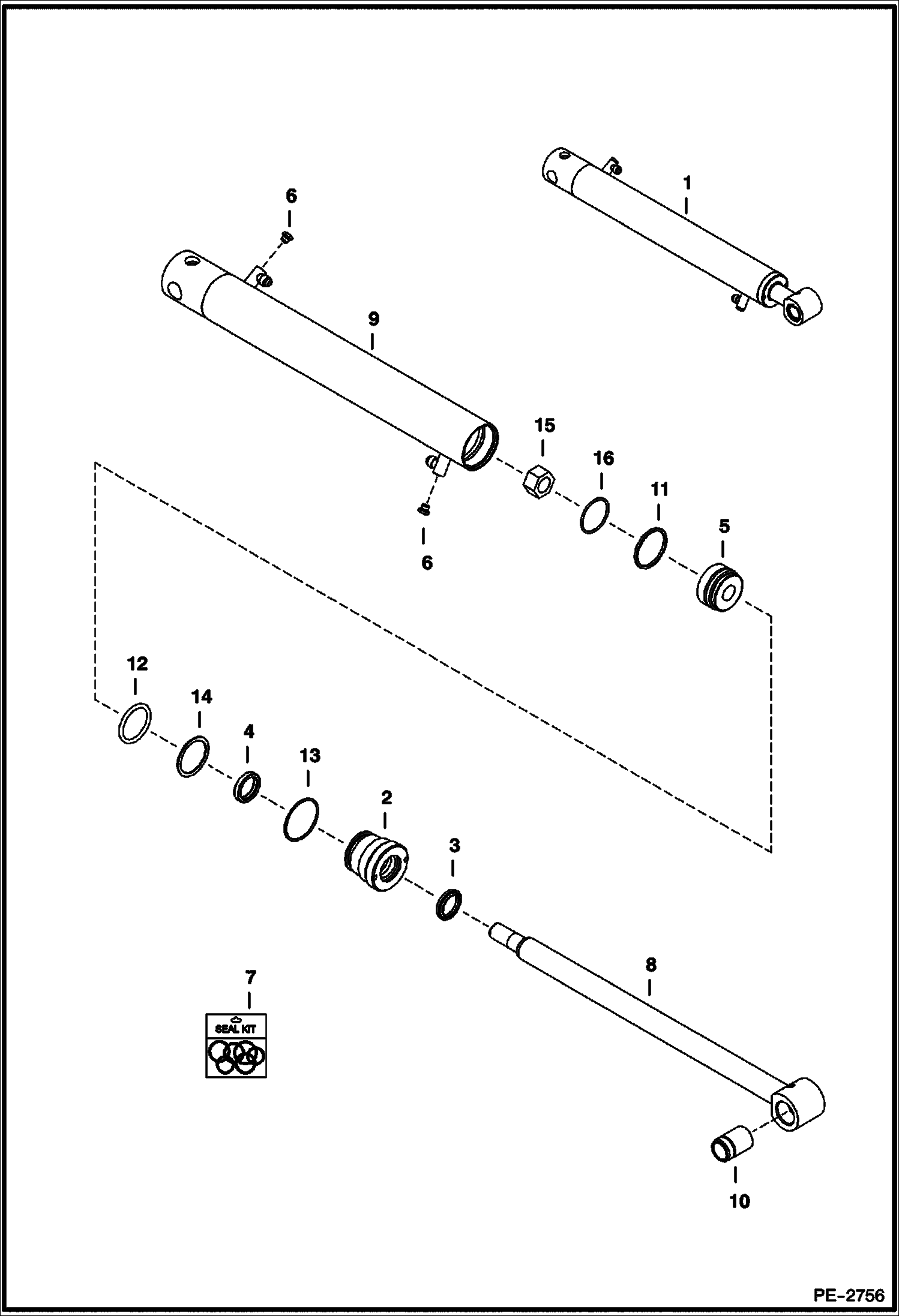

Запчасти Bobcat B100 TILT CYLINDER HYDRAULIC SYSTEM

1

7100589

CYLINDER

2

6537162

HEAD

3

6665208

SEAL

4

6667324

SEAL

5

6808611

PISTON

6

6812170

PLUG

6

75K3

O-RING

7

6808805

SEAL KIT

8

6815404

SHAFT

9

6815410

HOUSING

10

6815176

BUSHING

11

25K30126

O RING 10 Was 54K30126 - B

12

25K60128

O RING 10 Was 54K60128 - A

13

82K140

O-RING Was 58K000140B - B

14

73K328

RING

15

92D14

NUT

16

6519328

SEAL
