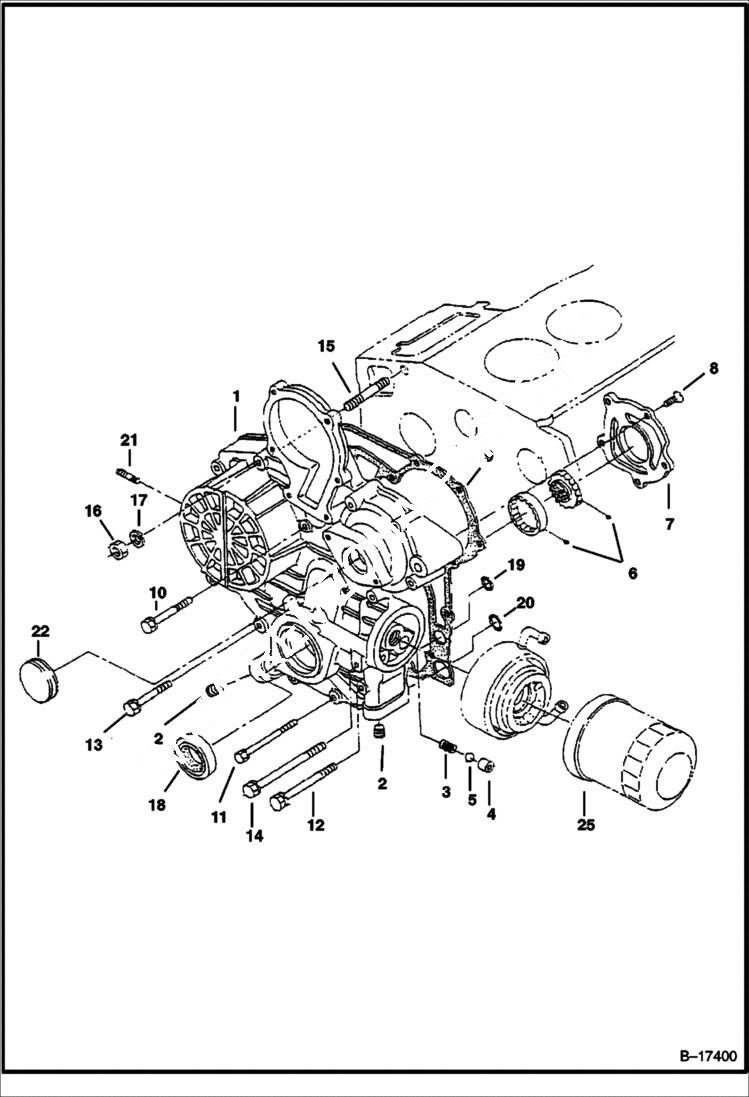

Запчасти Bobcat B100 GEAR CASE W/Turbo Charger POWER UNIT

1

6680489

GEARCASE

2

6672360

PLUG

3

6657554

SPRING

4

6657553

SEAT valve

5

6657426

BALL

6

6657549

ROTOR ASSY oil pump

7

6672361

COVER

8

6677594

SCREW

9

6657479

GASKET gearcase - this gasket does not require Ref. 19 & 20 o-rings - Was 6672362 - A

10

6657412

BOLT

11

6670770

BOLT

12

6657413

BOLT

13

6657457

BOLT

14

6657589

BOLT

15

6680263

STUD

16

1DM6

NUT

17

6667419

WASHER

18

6670769

O-RING

19

6598097

O-RING

20

3966515

O RING

21

6680264

STUD

22

6672363

COVER
