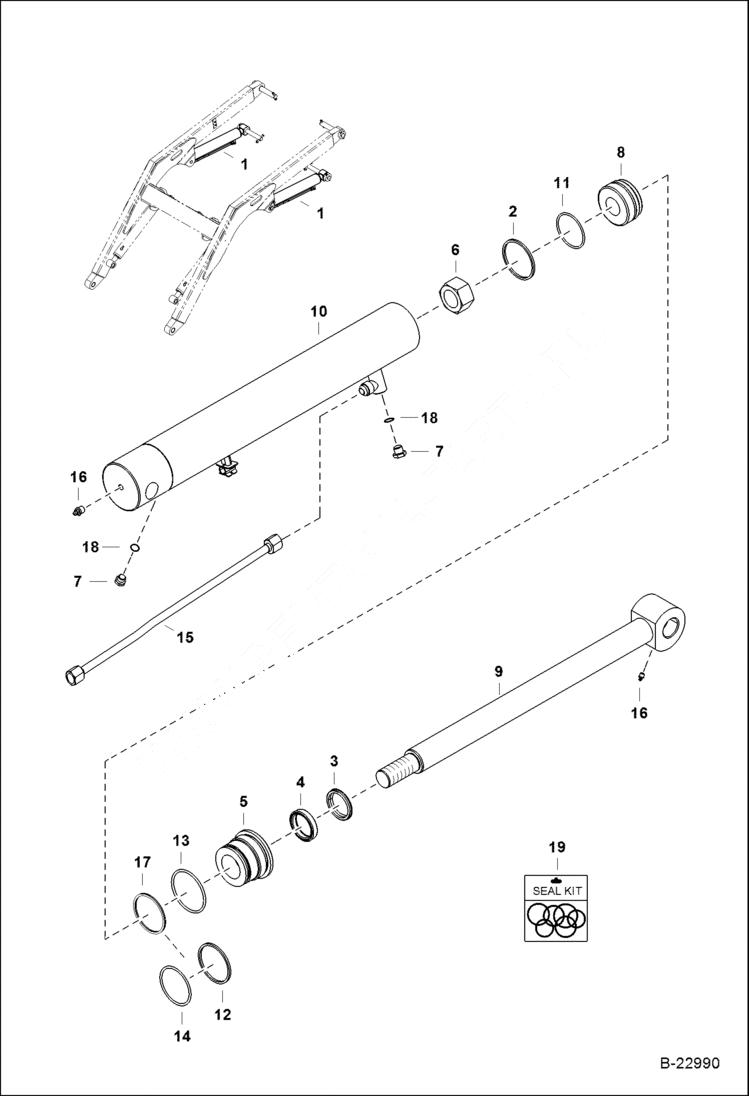

Запчасти Bobcat B100 LIFT CYLINDER HYDRAULIC SYSTEM

1

6815317

CYLINDER Ref, 2-16, 18 - Was 6964498 - A

2

1522534

SEAL

3

6690707

WIPER, ROD CYL Was 6665086 - A

4

6667326

SEAL

5

6806124

HEAD

6

6810539

NUT

7

6812170

PLUG W/Ref. 18

8

6815011

PISTON

9

6815318

SHAFT

10

6815322

BODY

11

25K30202

O RING 10 Was 54K30202 - B

12

25K40208

O RING 10 Was 54K40208 - B

13

82K230

O-RING Was 58K-230 - A

14

73K228

BACK-UP RING

15

6964499

PIPE

16

10H25

FITTING, GREASE 5

17

7008778

SEAL, QUAD

18

75K3

O-RING

19

7135559

SEAL KIT Ref. 2-4, 6, 11, 13, & 17, - Was 6816537 - A
