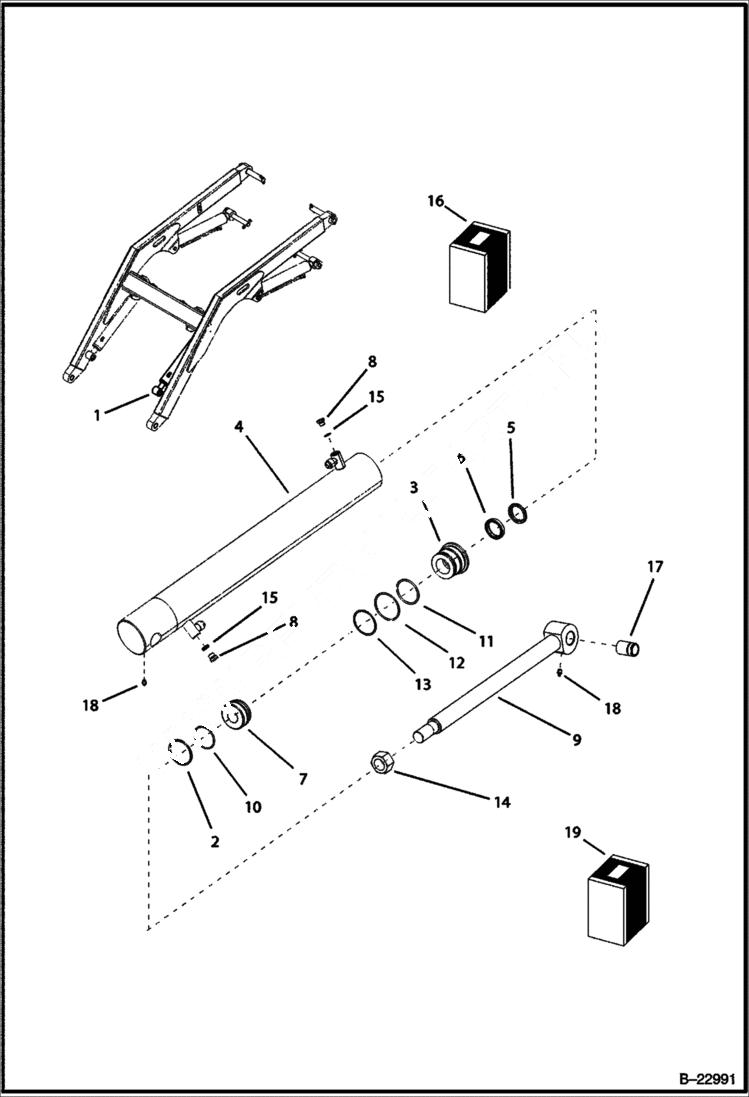

Запчасти Bobcat B100 TILT CYLINDER Left HYDRAULIC SYSTEM

1

6964500

CYLINDER ref, 2-8,10-16, 18

2

6519328

SEAL

3

7106798

HEAD Was 6537162 - A

4

6815410

HOUSING

5

6665208

SEAL

6

6667324

SEAL

7

6808611

PISTON

8

6812170

PLUG W/Ref. 15

9

SHAFT NSS

10

25K30126

O RING 10 Was 54K30126 - B

11

25K60128

O RING 10 Was 54K60128 - A

12

58K140

O-RING

13

73K328

RING

14

92D14

NUT

15

75K3

O-RING

16

6815404

SHAFT REF 9,17

17

6815176

BUSHING

18

10H25

FITTING, GREASE 5

19

6808805

SEAL KIT Ref 2,5,6,10-13 - Was 6808667 - A
