ELECTRICAL CIRCUITRY

Запчасти Bobcat B100 ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

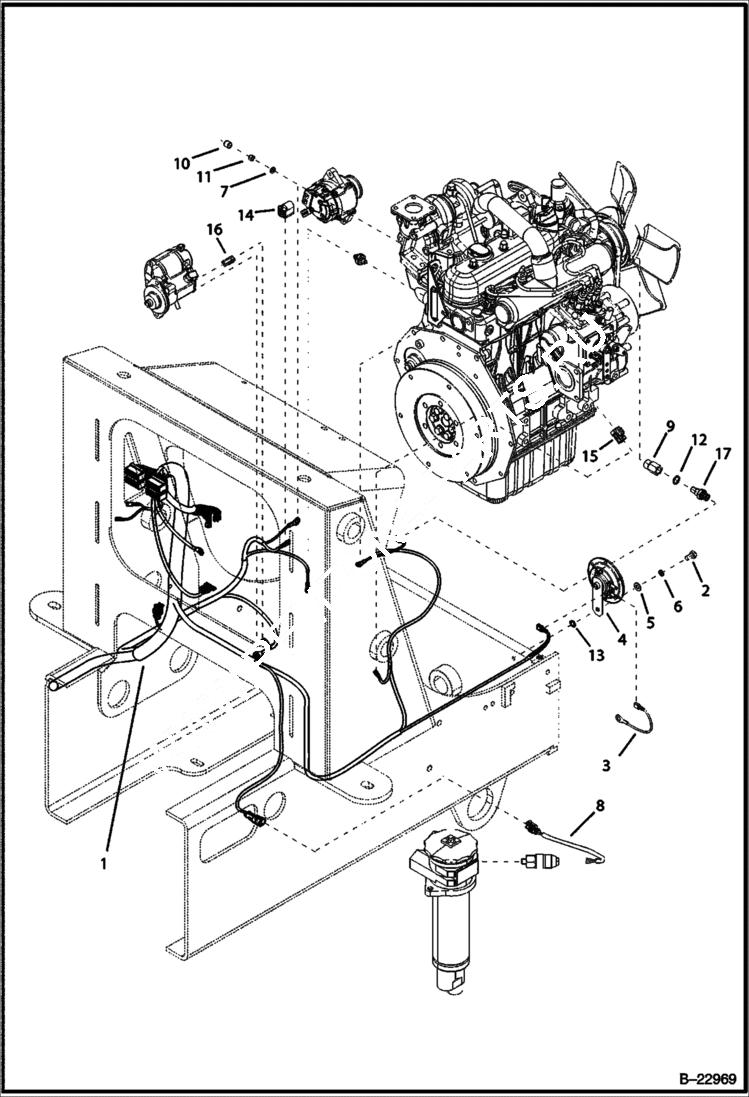

Схема запчастей Bobcat B100 - ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6967319

HARNESS Also Order 6968167 harness

2

1CM816

BOLT

3

6967322

CABLE

4

6961358

HORN

5

6964587

WASHER

6

8EM80

WASHER

7

WASHER

8

6967321

HARNESS

9

6961360

REDUCER

10

6962226

COVER

11

16DM6

NUT

12

6962814

RING

13

6964624

WASHER

14

6964728

CONNECTOR

15

6969837

CONNECTOR Was 6964729 - A

16

6964731

CONNECTOR

17

6966749

SENSOR hydraulic temperature
