BOOM & ATTACHING PARTS 5700 11056 & Below

Запчасти Bobcat B100 BOOM & ATTACHING PARTS 5700 11056 & Below MAIN FRAME

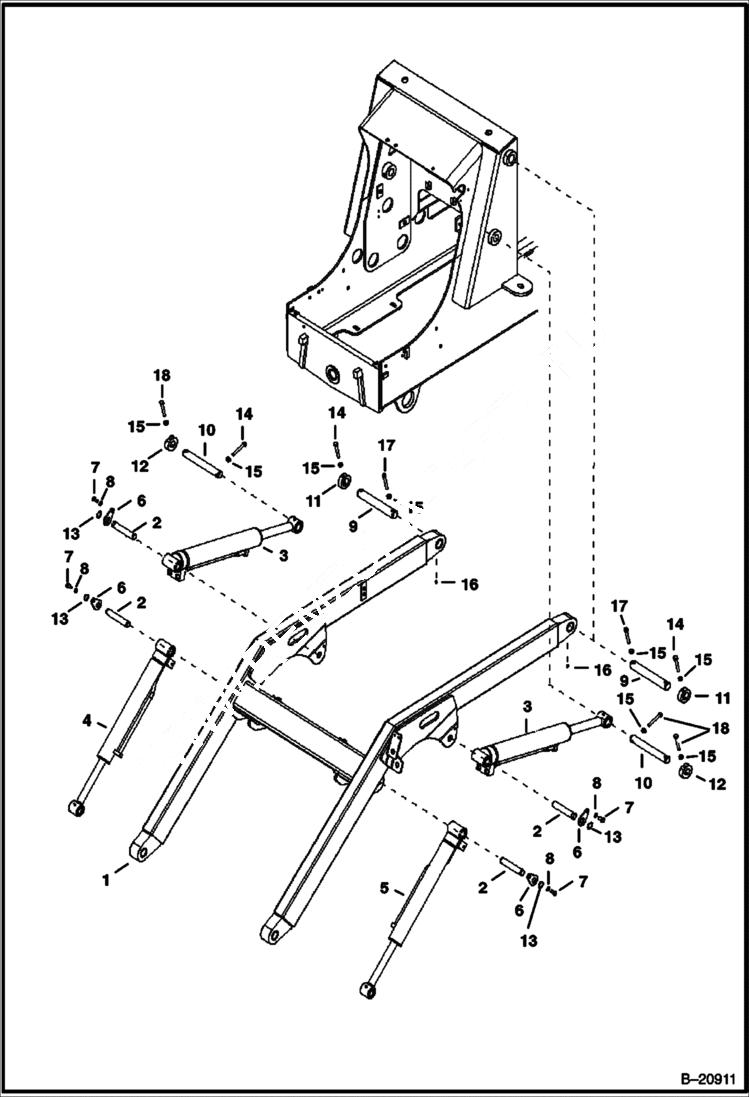

Схема запчастей Bobcat B100 - BOOM & ATTACHING PARTS 5700 11056 & Below MAIN FRAME
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6968201

LOADING ARMS B100B See Illustration BOOM/ B20910 W/A

2

6960231

PIN

3

6960680

CYLINDER assy-lift

4

6960678

CYLINDER assy - right tilt

5

6960679

CYLINDER assy - left tilt

6

6960235

PLATE

7

1CM1020

BOLT

8

8EM100

WASHER

9

6960676

PIN

10

6960681

PIN

11

6960677

RING

12

6960682

RING

13

6JM25

RING

14

1CM1075

BOLT

15

16DM10

NUT

16

6962268

GREASE FITTING

17

1GM1075

BOLT

18

1GM1060

BOLT
