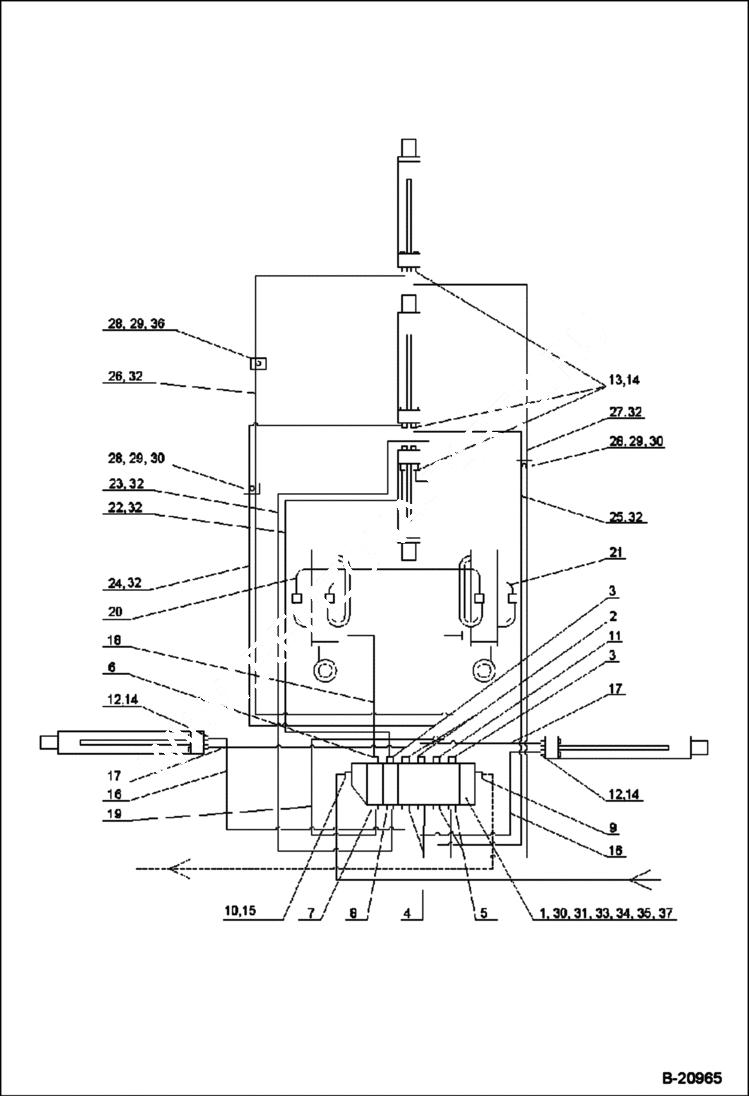

Запчасти Bobcat B100 HYDRAULIC CIRCUITRY (Backhoe) HYDRAULIC SYSTEM

1

6962694

VALVE control - backhoe

2

6960720

FITTING

3

6960733

FITTING

4

6960735

FITTING

5

6960732

FITTING

6

6960737

FITTING

7

6960736

FITTING

8

6960734

FITTING

9

6960702

FITTING

10

6960654

FITTING

11

6960740

FITTING

12

6960704

FITTING

13

6960703

FITTING

14

6962101

SEAL

15

6962813

CU RING

16

6962278

HOSE

17

6962279

HOSE

18

6962280

HOSE

19

6962281

HOSE

20

6962282

HOSE

21

6962283

HOSE

22

6962284

HOSE

23

6962285

HOSE

24

6962286

HOSE

25

6962287

HOSE

25

6962289

HOSE

26

6962288

HOSE

28

6960756

HOLDER hoses

29

6960755

PLATE top

30

1CM835

BOLT

31

6962819

WASHER

32

6960753

HOSE PROTECTION 1300MM

33

16DM8

NUT

34

6960754

KNOB

35

6960738

CONTROL VALVE upgrade control valve

36

1CM830

BOLT

37

LEVER NLA - for stabilizers
