ARM CYLINDER (B200) 5702 11088 & Below (B250) 5703 11054 & Below

Запчасти Bobcat B200 ARM CYLINDER (B200) 5702 11088 & Below (B250) 5703 11054 & Below HYDRAULIC SYSTEM

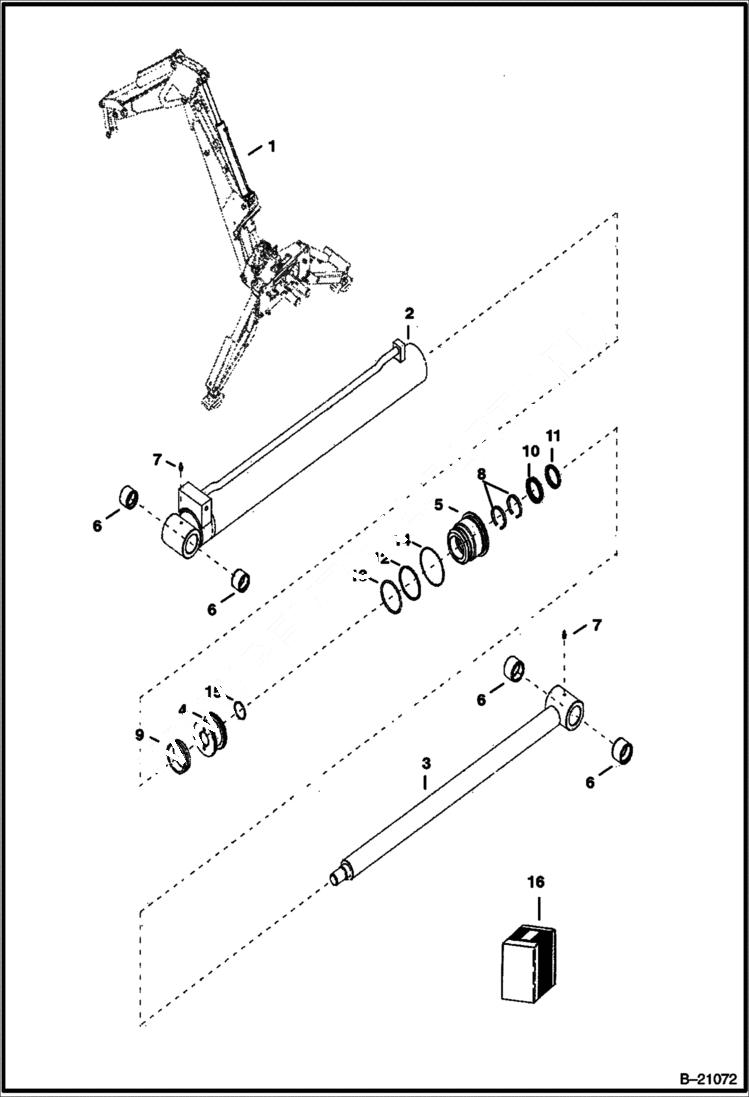

Схема запчастей Bobcat B200 - ARM CYLINDER (B200) 5702 11088 & Below (B250) 5703 11054 & Below HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6960613

ARM CYLINDER See Illustration BOOM/ B21060 See Illustration BOOM/ B21052 W/Ref. 2-15

2

6960581

HOUSING

3

6960582

ROD

4

6960578

PISTON

5

6960580

HEAD

6

6960579

BUSHING

7

6962268

GREASE FITTING

8

6960588

SEAL

9

6960583

SEAL

10

6960589

SEAL

11

6960590

WIPER ring

12

6960586

BACK-UP RING

13

6960585

O-RING

14

6960587

O-RING

15

6960584

O-RING

16

6962316

SEAL KIT W/Ref. 8-15
