LIFT CYLINDER (B200) 5702 11100 & Below (B250) 5703 11070 & Below

Запчасти Bobcat B200 LIFT CYLINDER (B200) 5702 11100 & Below (B250) 5703 11070 & Below HYDRAULIC SYSTEM

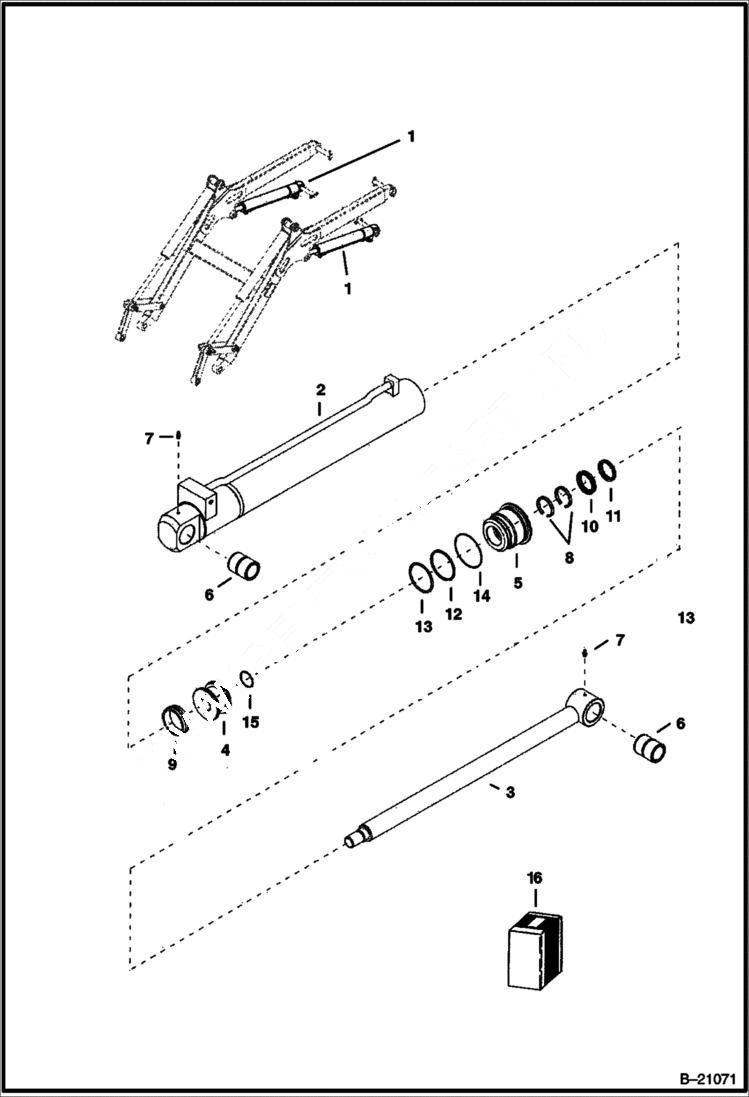

Схема запчастей Bobcat B200 - LIFT CYLINDER (B200) 5702 11100 & Below (B250) 5703 11070 & Below HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6961962

LIFT CYLINDER See Illustration LIFT ARM & ATTACHING PARTS/ B21015 W/Ref. 2-15

2

6960946

HOUSING

3

6960947

ROD

4

6960309

PISTON

5

6960321

HEAD

6

6960940

BUSHING

7

6962268

GREASE FITTING

8

6960280

SEAL

9

6960314

SEAL

10

6960277

SEAL

11

6960279

WIPER

12

6960317

BACK-UP RING

13

6960318

O-RING

14

6960319

O-RING

15

6960278

O-RING

16

6962303

SEAL KIT W/Ref. 8-15
