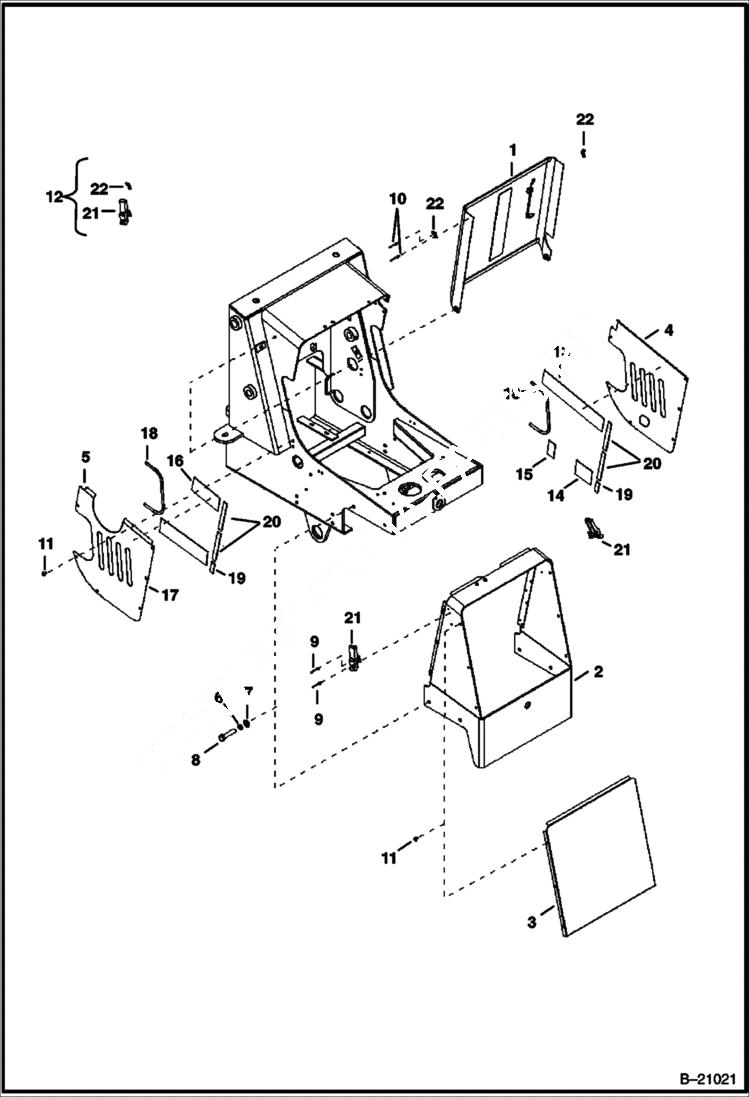

Запчасти Bobcat B200 PANELS MAIN FRAME

1

6960338

HOOD

2

6960998

COVER

3

6960997

COVER

4

6961008

COVER

5

6960999

COVER

6

1CM1225

BOLT

7

6964573

WASHER

8

8EM120

WASHER

9

6964663

RIVET

10

6964662

RIVET

11

6960688

BOLT

12

6960341

CLIP W/Ref. 21 & 22

13

6961000

INSULATION

14

6961001

INSULATION

15

6961002

INSULATION

16

6961003

INSULATION

17

6961004

INSULATION

18

6961005

RUBBER

19

6961006

SEAL

20

6961007

SEAL

21

CLIP NSS - hood - W/Ref. 12

22

CLIP NSS - hood - W/Ref. 12
