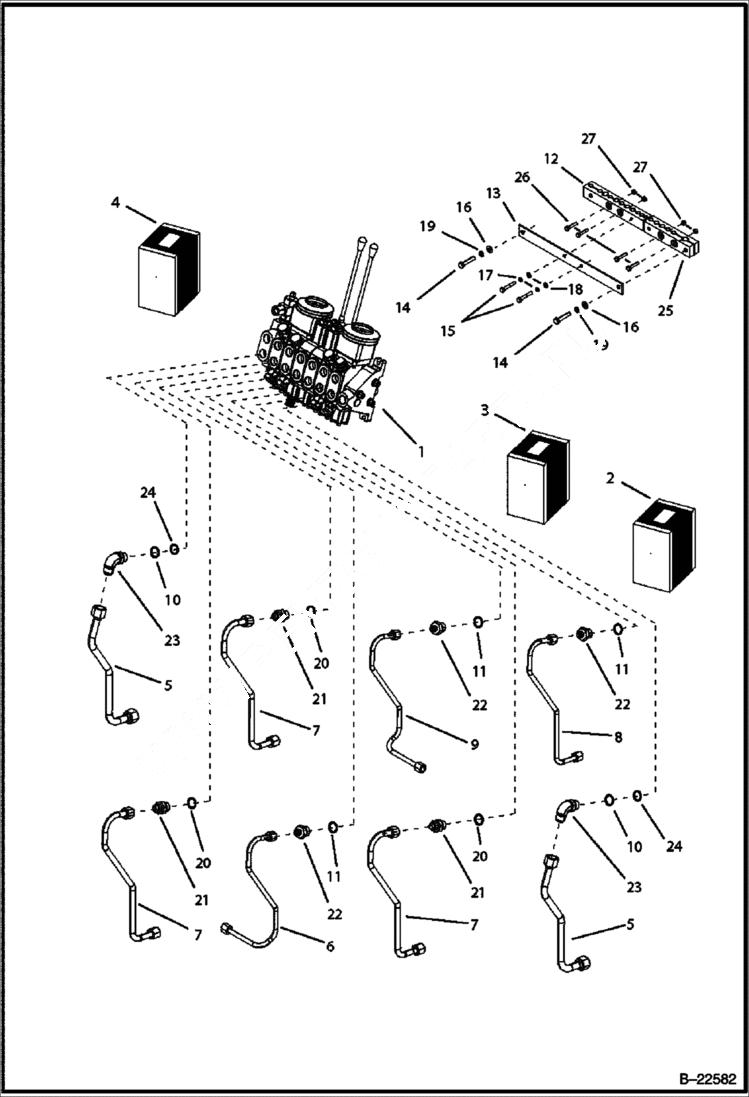

Запчасти Bobcat B250 HYDRAULIC CIRCUITRY (Side Shift Backhoe) HYDRAULIC SYSTEM

1

6966107

DISTRIBUTOR

2

6966069

FITTING Ref. 21, 20

3

6966079

FITTING Ref. 22, 11

4

6966088

FITTING Ref. 23, 10

5

6966110

PIPE

6

6966124

PIPE

7

6966112

PIPE

8

6966114

PIPE

9

6966116

PIPE

10

6969373

O RING

11

6969371

SEAL

12

6967366

PIPE HOLDER Sale as couple

13

6967365

PLATE PIPE HOLDER

14

4CM840

BOLT

15

1CM640

SCREW

16

6962819

WASHER

17

8EM60

WASHER

18

6964586

WASHER

19

8EM80

WASHER

20

6969370

SEAL

21

FITTING NLA

22

FITTING NLA

23

FITTING NLA

24

6969385

RING

25

6967369

PIPE HOLDER Sale as couple

26

6968477

BOLT

27

1DM6

NUT
