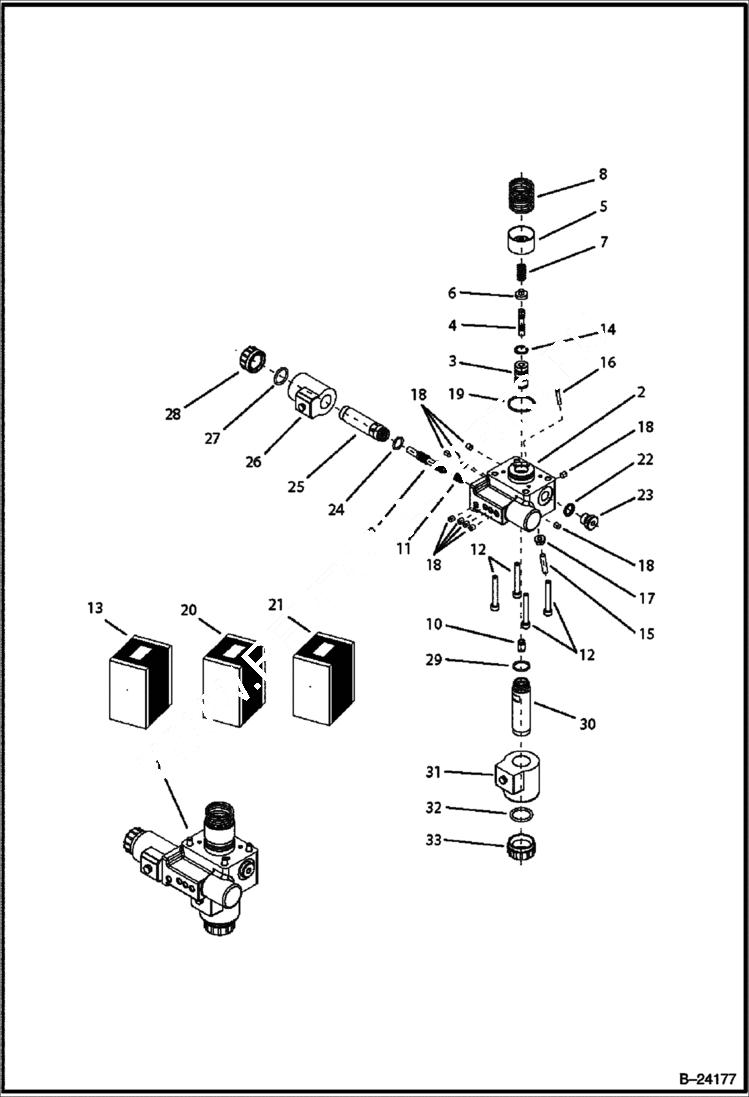

Запчасти Bobcat B300 HYDRAULIC CIRCUITRY Hydraulic Motor HYDRAULIC SYSTEM

1

6967740

CONTROL PART Ref. 2-21

2

6967759

HOUSING

3

6967760

BUSH

4

6967761

PISTON

5

6967762

BUSHING

6

6967763

COLLAR

7

6967764

SPRING

8

6967765

SPRING

9

6967766

PISTON

10

6967767

BUSH

11

6967768

SPRING

12

6682961

SCREW Was 6967769 - A

13

6967795

SCREW Ref. 22 - 23 - Was 6967770 - A

14

6967771

RING

15

6967772

PIN

16

6967773

PIN

17

6967774

NUT

18

6967775

PIN

19

6967776

O-RING

20

6967777

SOLENOID Ref. 29-33

21

6685022

SOLENOID,VALVE Ref. 24-28 - Was 6967779 - A

22

SEAL NSS

23

PLUG NSS

24

O-RING NSS

25

ROD NSS

26

SOLENOID NSS

27

O-RING NSS

28

NUT NSS

29

O-RING NSS

30

ROD NSS

31

SOLENOID NSS

32

O-RING NSS

33

NUT NSS
