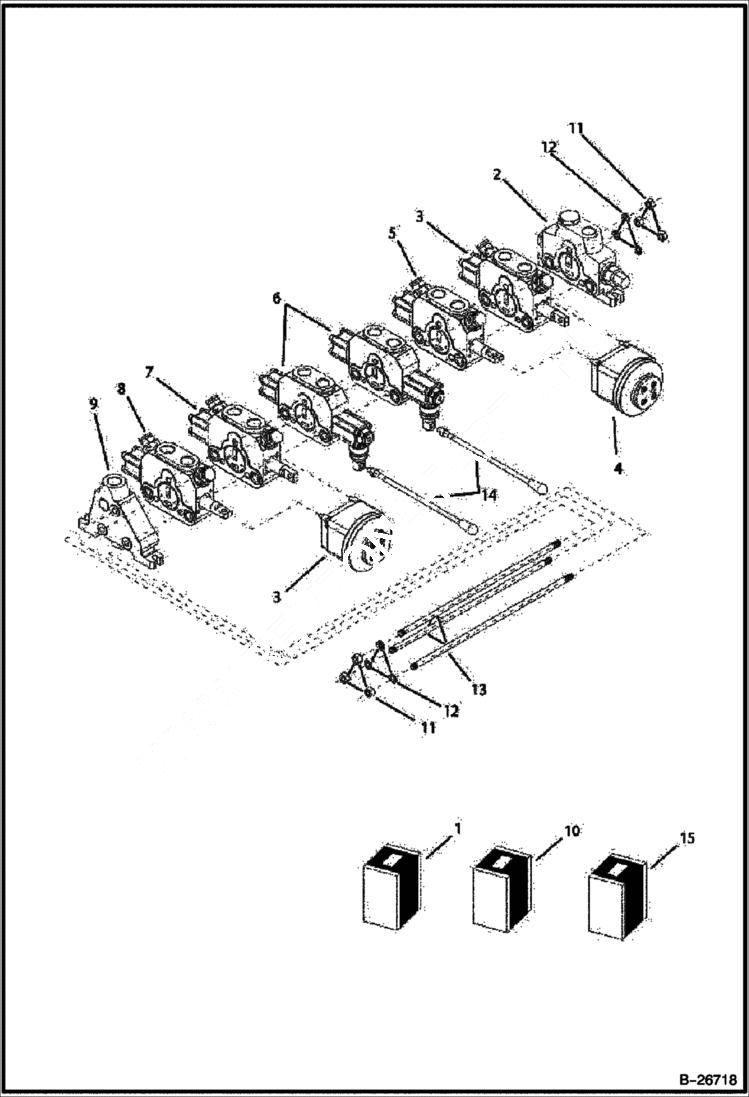

Запчасти Bobcat B300 HYDRAULIC CIRCUITRY Rear Distributor HYDRAULIC SYSTEM

1

6973810

DISTRIBUTOR REAR W/Ref 2-9, 11-13

2

6969764

INLET SECTION

3

6969765

WORKING SECTION

4

6682356

KIT Was 6969492 - A

5

6969766

WORKING SECTION

6

6969494

SECTION

7

6969767

WORKING SECTION

8

6969497

SECTION

9

6969498

SECTION

10

6969499

KIT

11

NUT NLA - Order Ref 9

12

WASHER NLA - Order Ref 9

13

BOLT NLA - Order Ref 9

14

6969488

LEVER

15

6969768

SEAL KIT Complete
