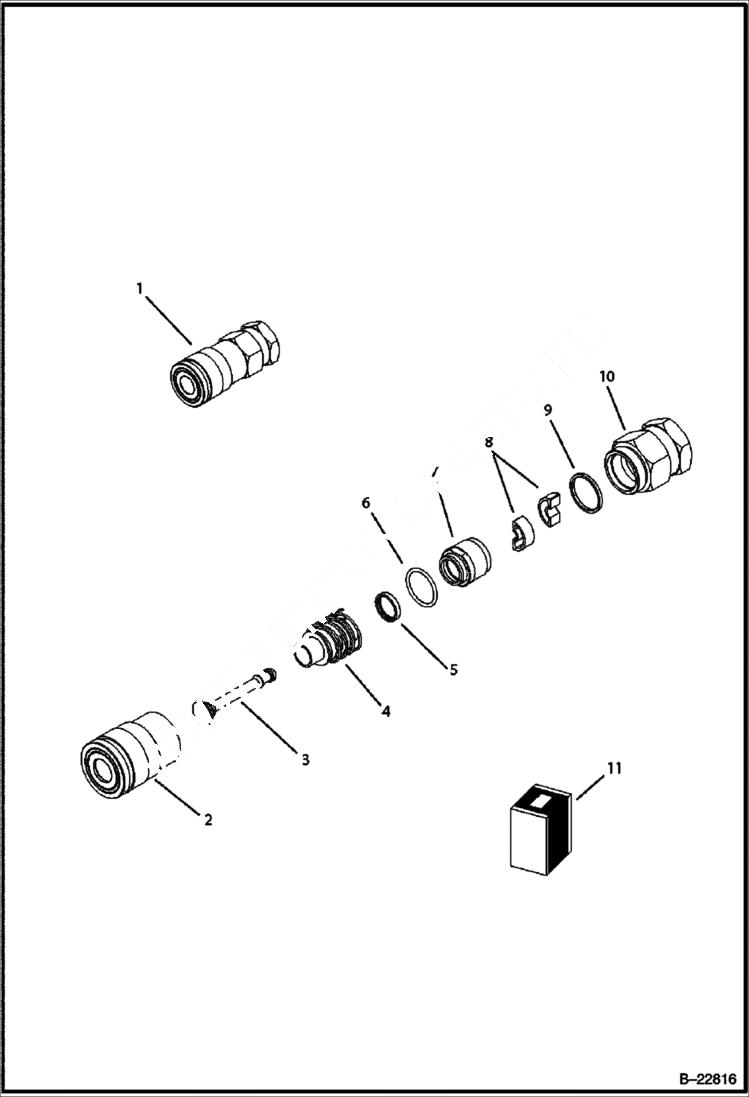

Запчасти Bobcat BL275 HYDRAULIC CIRCUITRY Loading Arm HYDRAULIC SYSTEM

1

6672960

COUPLER, FF FEMALE W/Ref. 2-10

2

CYLINDER NLA

3

VALVE NLA

4

SPRING NLA

6

SEAL NLA

7

O-RING NLA

8

HOLDER NLA

9

O-RING NLA

10

FITTING NLA

11

6969537

KIT W/Ref. 3,5,6,8,9
