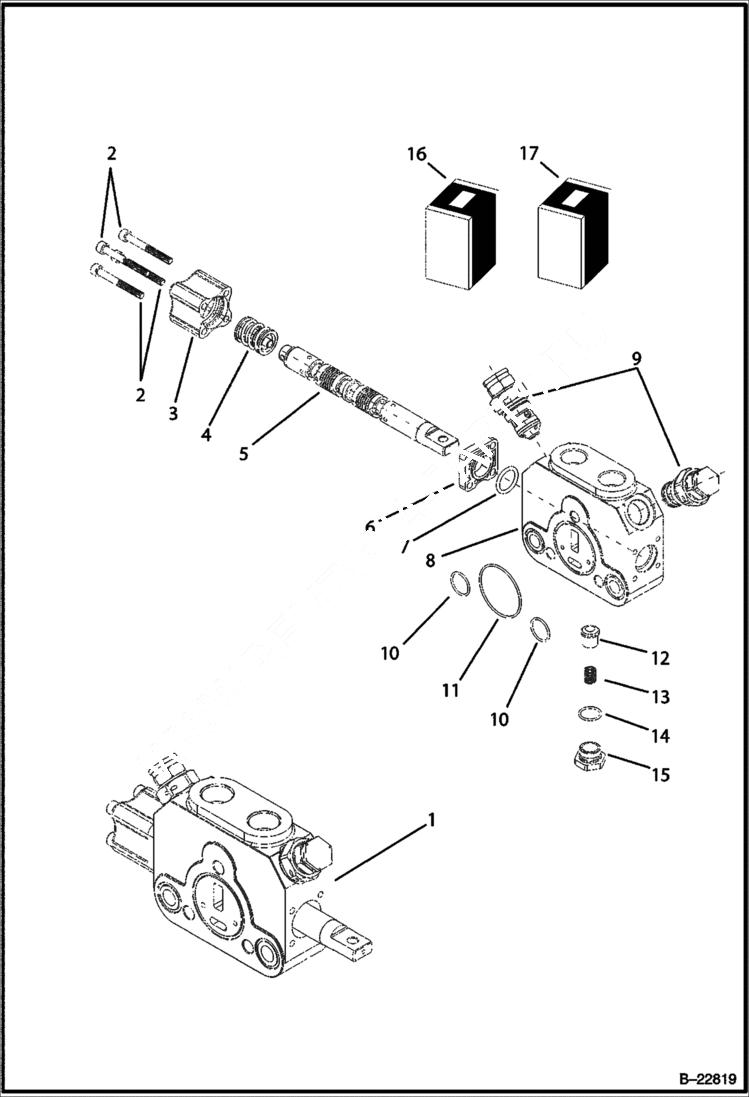

Запчасти Bobcat BL275 HYDRAULIC CIRCUITRY Backhoe Control Valve HYDRAULIC SYSTEM

1

6683269

SECTION ref. 2-15

2

BOLT NSS

3

COVER NSS

4

SPRING-UNIT NSS

5

SHAFT NSS

6

COVER NSS

7

O-RING NSS

8

BODY NSS

9

6682361

VALVE

9

6691274

SEAL KIT

10

O-RING NSS

11

O-RING NSS

12

CYLINDER NSS

13

SPRING NSS

14

O-RING NSS

15

PLUG NSS

16

6682357

VALVE KIT ref 12, 13, 14, 15

17

6683281

CAP
