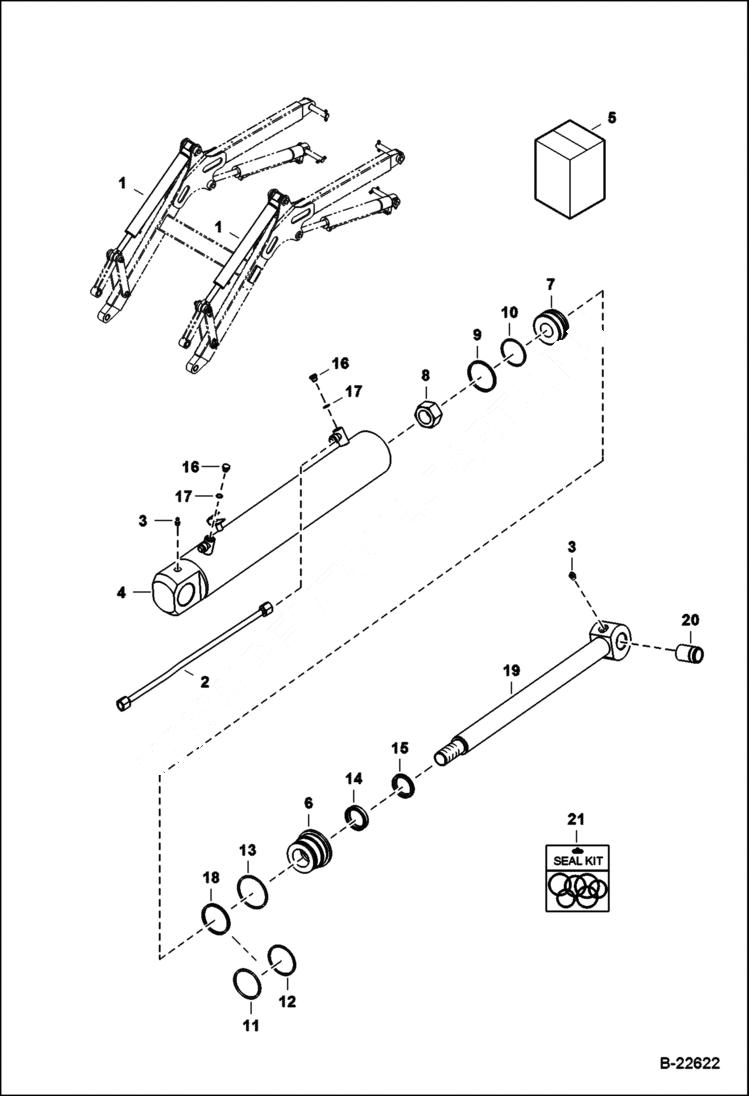

Запчасти Bobcat BL275 TILT CYLINDER HYDRAULIC SYSTEM

1

6815180

TILT CYLINDER Ref. 2-16 - 1.18'' base end hole diameter - Was 6963799 - A

2

6963636

TUBE

3

10H25

FITTING, GREASE 5 Grease

4

6815184

HOUSING

5

6815181

SHAFT Ref. 19, 20

6

6806124

HEAD

7

6815011

PISTON

8

6810539

NUT

9

1522534

SEAL

10

25K30202

O RING 10 Was 54K30202 - B

11

25K40208

O RING 10 Was 54K40208 - B

12

73K228

BACK-UP RING

13

82K230

O-RING Was 58K000230B - A

14

6667326

SEAL

15

6690707

WIPER, ROD CYL Was 6665086 - A

16

6812170

PLUG W/Ref. 17

17

75K3

O-RING

18

7008778

SEAL, QUAD

19

SHAFT NLA - W/A

20

6815161

BUSHING

21

7135559

SEAL KIT w/Ref. 8-10, 13-15, & 18 - Was 6814352 - A
