SWING CYLINDER Sideshift Upper

Запчасти Bobcat BL370 SWING CYLINDER Sideshift Upper HYDRAULIC SYSTEM

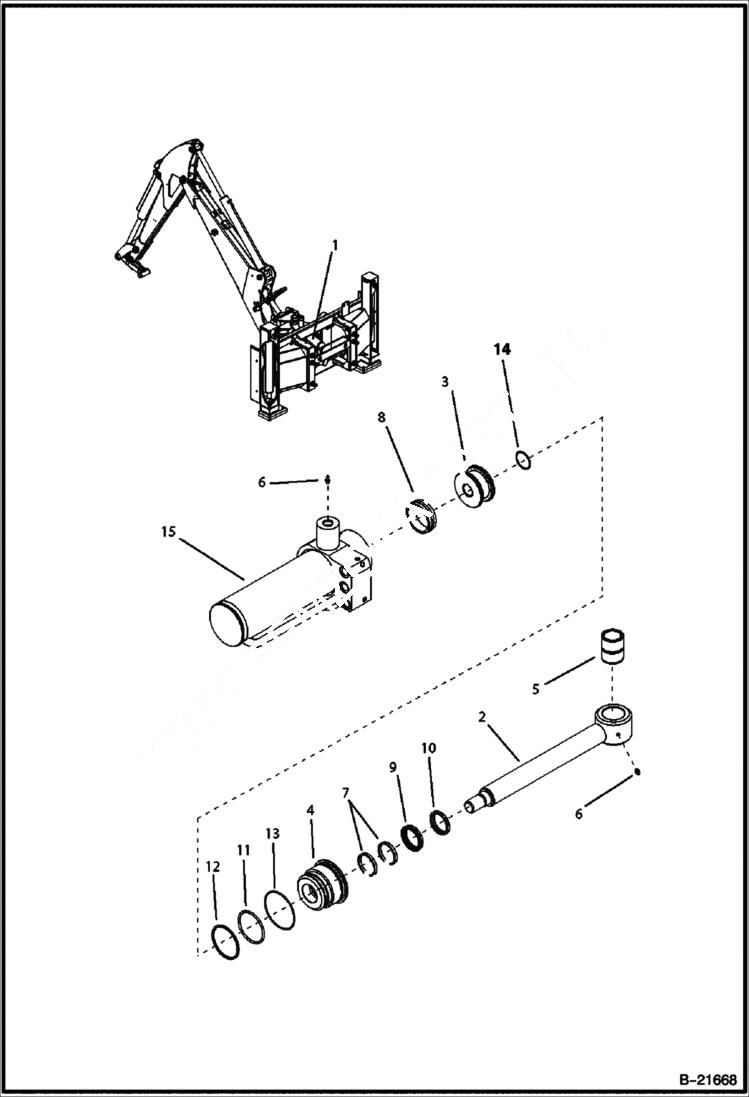

Схема запчастей Bobcat BL370 - SWING CYLINDER Sideshift Upper HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6960919

CYLINDER W/Ref. 2-15

2

6960943

ROD

3

6960175

PISTON

4

6960176

HEAD

5

6960940

BUSHING

6

6962268

GREASE FITTING

7

6960280

SEAL

8

6960610

SEAL

9

6960277

SEAL

10

6960279

WIPER

11

6960281

BACK-UP RING

12

6960282

O-RING

13

6960284

O-RING

14

6960278

O-RING

15

HOUSING NLA - Was 6960942 - A
