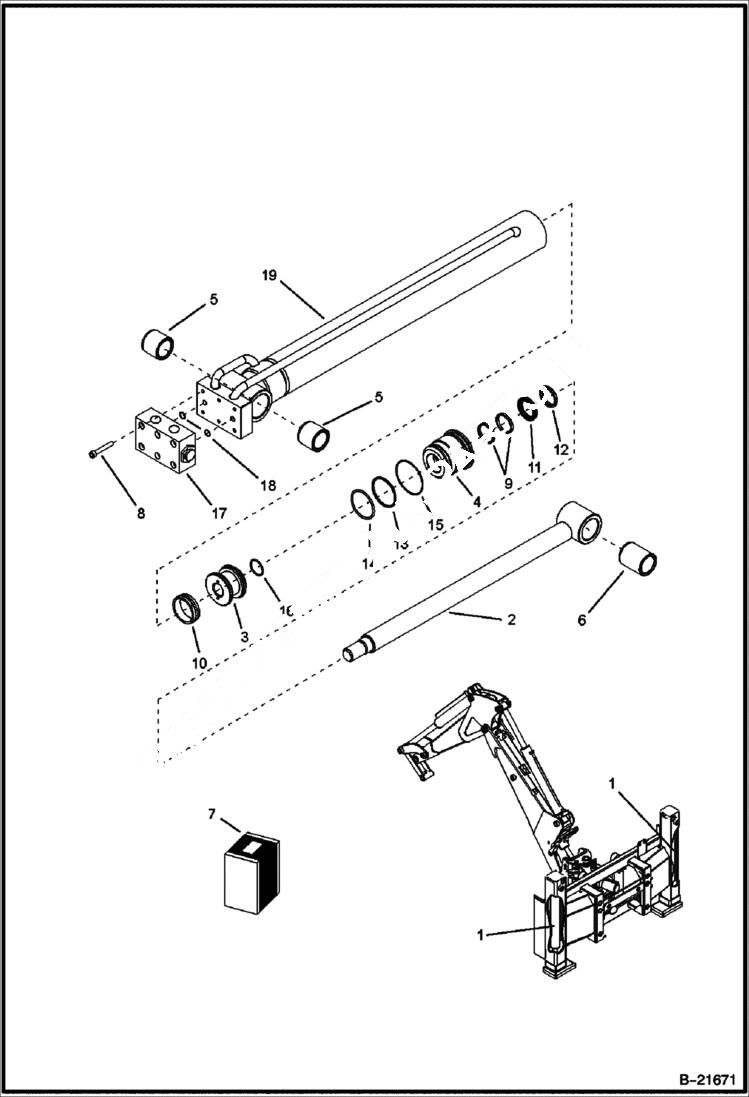

Запчасти Bobcat BL370 STABILIZER CYLINDER Sideshift HYDRAULIC SYSTEM

1

6961437

CYLINDER

2

6961433

ROD

3

6960175

PISTON

4

6960935

HEAD

5

6960930

BUSHING

6

6960931

BUSHING

7

6960305

HYDRAULIC LOCK WRefs. 17 & 18

8

1GM640

BOLT

9

6960320

SEAL

10

6960610

SEAL

11

6960315

SEAL

12

6960316

WIPER

13

6960281

BACK-UP RING

14

6960282

O-RING

15

6960284

O-RING

16

6960278

O-RING

17

LOCK NLA - hydraulic - order Ref. 8

18

6960308

O-RING

19

6961432

HOUSING
