HYDRAULIC CIRCUITRY (Axial Pump)

Запчасти Bobcat BL370 HYDRAULIC CIRCUITRY (Axial Pump) HYDRAULIC SYSTEM

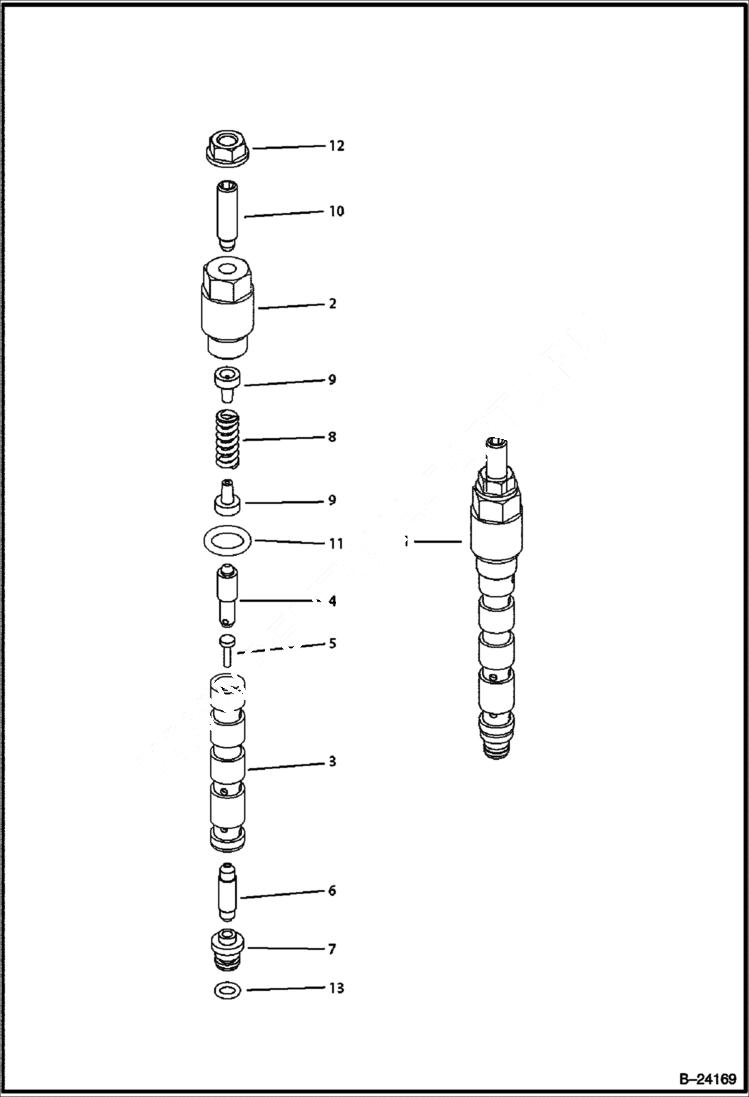

Схема запчастей Bobcat BL370 - HYDRAULIC CIRCUITRY (Axial Pump) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6967511

VALVE Ref. 2-13

2

6967543

SCREW

3

VALVE NLA - Order 6967511 - Was 6967544 - A

4

6967545

PISTON

5

6967546

PISTON

6

PISTON NLA - Order 6967511 - Was 6967547 - A

7

6967548

SEAT

8

6967549

SPRING

9

6967550

COLLAR

10

6967551

SCREW

11

6967552

O-RING

12

6685404

NUT Was 6967531 - A

13

6682913

O-RING Was 6967530 - A
