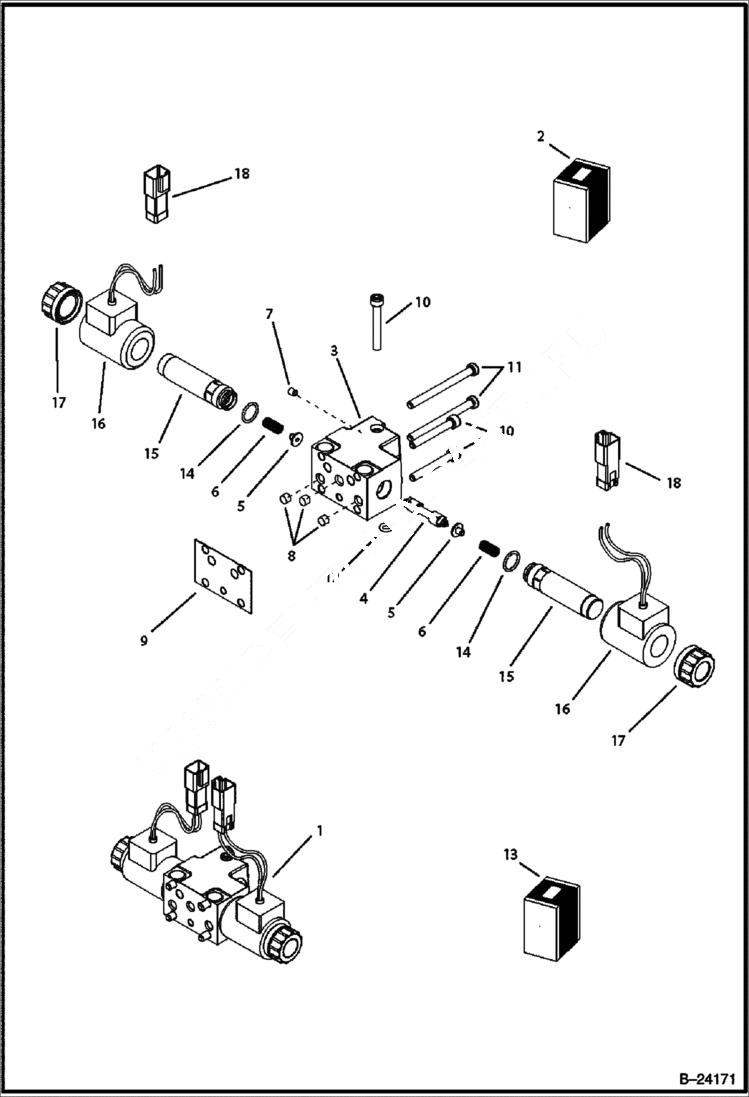

Запчасти Bobcat BL370 HYDRAULIC CIRCUITRY (Axial Pump) HYDRAULIC SYSTEM

1

6967412

KIT Ref. 2-18

2

6967611

KIT Ref. 3-12

3

6967612

HOUSING

4

6967613

PISTON

5

6682956

COLLAR Was 6967614 - A

6

6682957

SPRING Was 6967615 - A

7

6682958

PLUG Was 6967616 - A

8

6682879

PIN Was 6967581 - A

9

6682959

GASKET Was 6967617 - A

10

6682961

SCREW Was 6967618 - A

11

6967619

SCREW

12

6682963

O-RING Was 6967620 - A

13

6969290

SOLENOID Ref. 14-18 - Was 6969286 - A

14

O-RING NLA

15

SHAFT NLA

16

SOLENOID NLA

17

NUT NLA

18

END NLA
