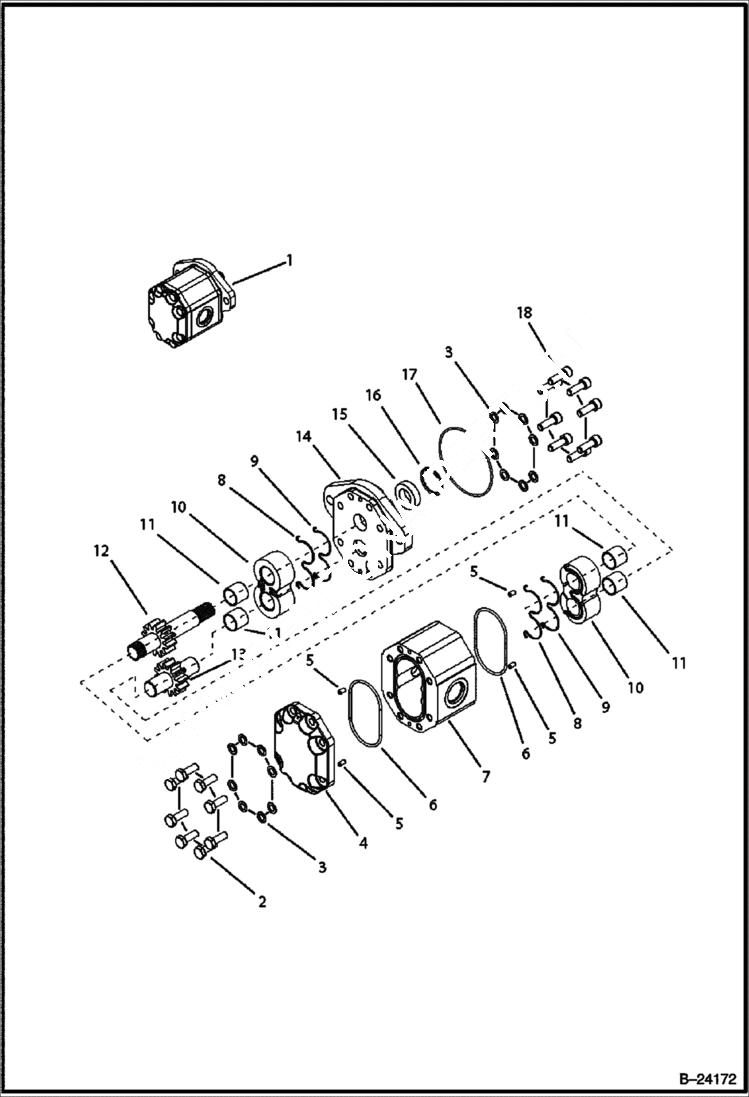

Запчасти Bobcat BL370 HYDRAULIC CIRCUITRY (Gear Pump) HYDRAULIC SYSTEM

1

GEAR PUMP NLA - Ref. 2-18 - W/O o-ring groove - A

1

6975293

GEAR PUMP W/O o-ring groove - will replace 6961761, use sealant

2

BOLT NSS

3

WASHER NSS

4

COVER NSS

5

PIN NSS

6

O-RING NSS

7

HOUSING NSS

8

SEAL NSS

9

SEAL NSS

10

HOLDER NSS

11

BEARING NSS

12

SHAFT NSS

13

SHAFT NSS

14

COVER NSS

15

SEAL NSS

16

RING NSS

17

O-RING NSS

18

BOLT NSS
