HYDRAULIC CIRCUITRY (Loader Control Valve)

Запчасти Bobcat BL370 HYDRAULIC CIRCUITRY (Loader Control Valve) HYDRAULIC SYSTEM

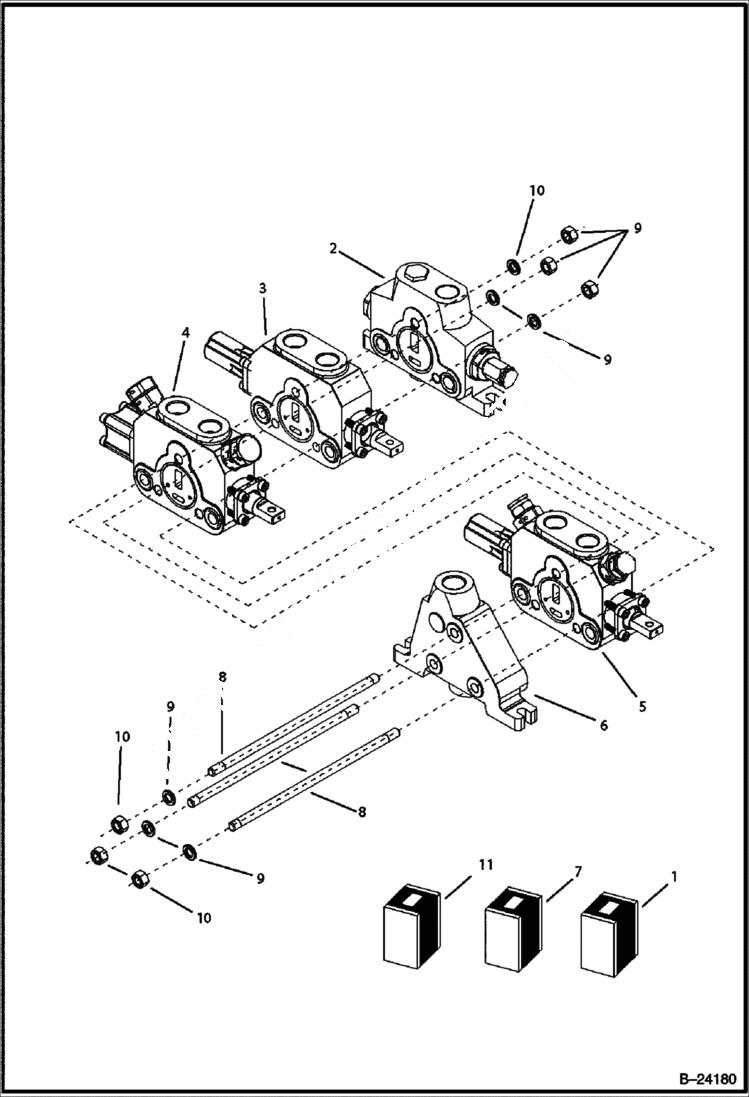

Схема запчастей Bobcat BL370 - HYDRAULIC CIRCUITRY (Loader Control Valve) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6968130

DISTRIBUTOR Ref. 2-10

2

6969759

INLET SECTION

3

6969510

SECTION

4

6969760

WORKING SECTION

5

6969512

SECTION

6

6969498

SECTION

7

6969514

KIT NLA

8

BOLT NLA

9

WASHER NLA

10

NUT NLA

11

6969761

SEAL KIT for all distributors
