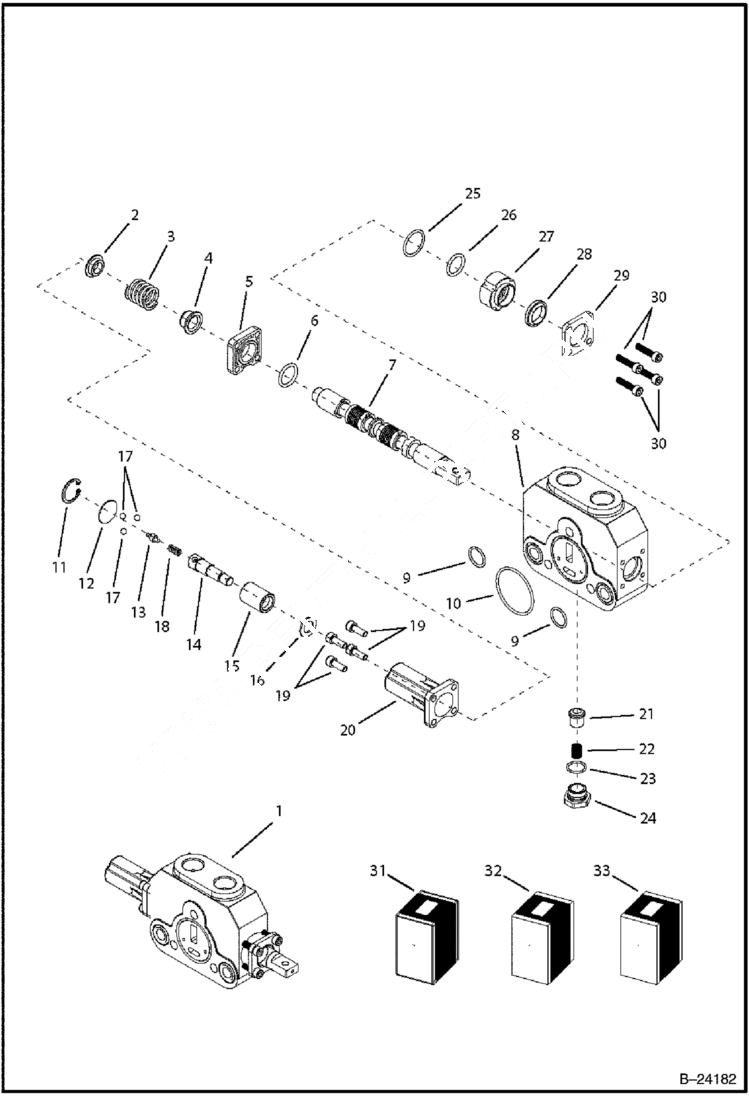

Запчасти Bobcat BL370 HYDRAULIC CIRCUITRY (Loader Control Valve) HYDRAULIC SYSTEM

1

6682378

SECTION Ref. 8, 9, 10, 31, 32, 33

2

SPRING BLOCK NSS

3

SPRING NSS

4

SPRING BLOCK NSS

5

COVER NSS

6

O-RING NSS

7

SHAFT NSS

8

BODY NSS

9

O-RING NSS

10

O-RING NSS

11

RING NSS

12

WASHER NSS

13

NEEDLE NSS

14

PIN NSS

15

CYLINDER NSS

16

WASHER NSS

17

BALL NSS

18

SPRING NSS

19

BOLT NSS

20

COVER NSS

21

CYLINDER NSS

22

SPRING NSS

23

O-RING NSS

24

PLUG NSS

25

O-RING NSS

26

O-RING NSS

27

RING NSS

28

RING NSS

29

COVER NSS

30

BOLT NSS

31

6682357

VALVE KIT Ref. 21, 22, 23, 24

32

6682383

FLOAT Ref. 2, 3, 4, 5, 6, 7, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20

33

6682382

END Ref. 25, 26, 27, 28, 29, 30
