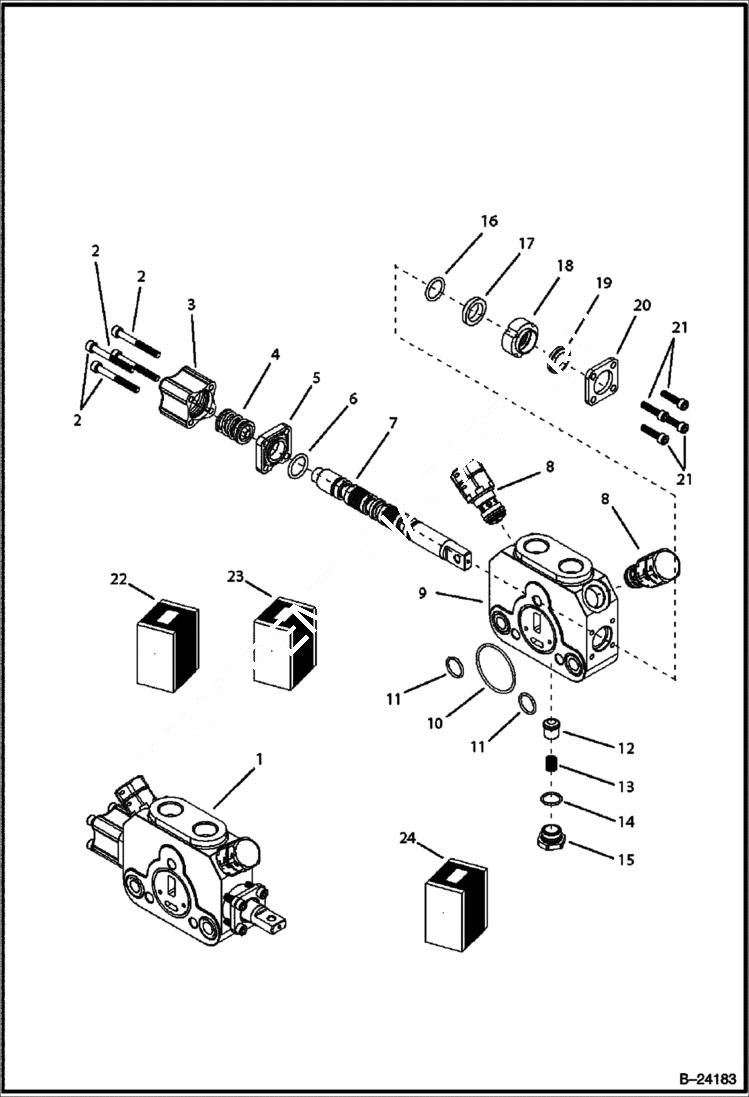

Запчасти Bobcat BL370 HYDRAULIC CIRCUITRY (Loader Control Valve) HYDRAULIC SYSTEM

1

6683279

SECTION Ref. 8, 9, 10, 11, 22, 23, 24

2

BOLT NSS

3

COVER NSS

4

SPRING NSS

5

COVER NSS

6

O-RING NSS

7

SHAFT NSS

8

6682360

VALVE

8

6691275

SEAL KIT

9

BODY NSS

10

O-RING NSS

11

O-RING NSS

12

CYLINDER NSS

13

SPRING NSS

14

O-RING NSS

15

PLUG NSS

16

O-RING NSS

17

RING NSS

18

RING NSS

19

RING NSS

20

COVER NSS

21

BOLT NSS

22

6682384

END Ref. 16, 17, 18, 19, 20, 21

23

6682357

VALVE KIT Ref. 12, 13, 14, 15

24

6683281

CAP Ref. 2, 3, 4, 5, 6, 7
