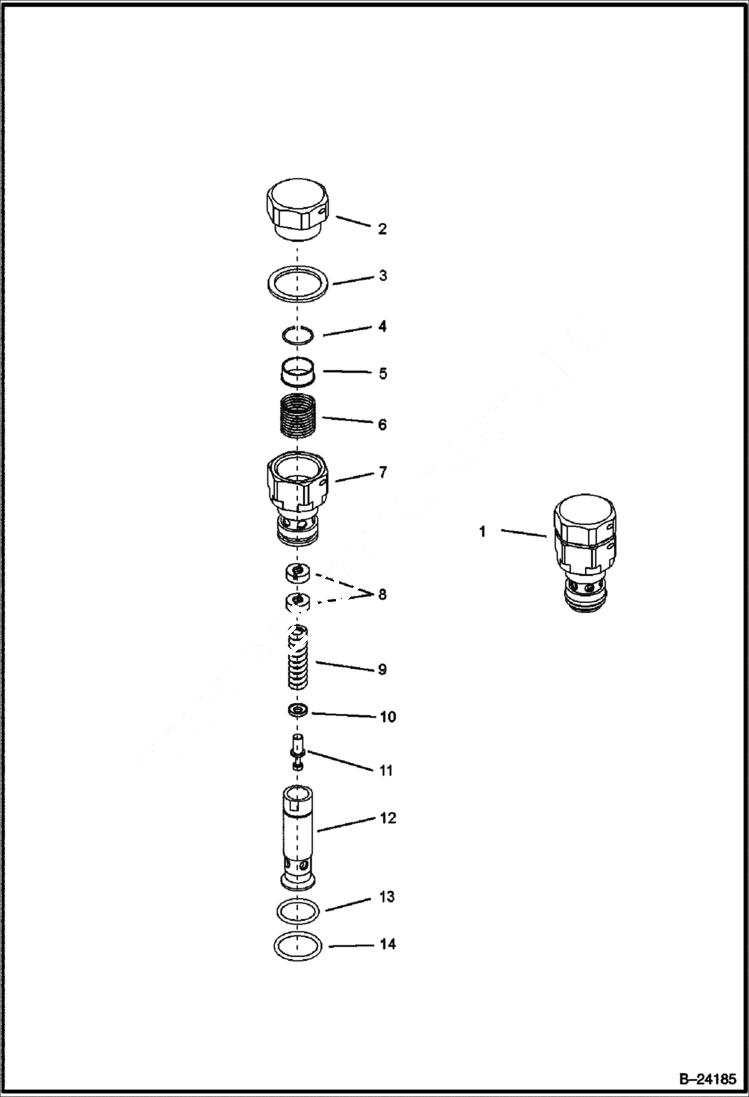

Запчасти Bobcat BL370 HYDRAULIC CIRCUITRY (Loader Control Valve) HYDRAULIC SYSTEM

1

6682360

VALVE Ref. 2-14

1

6691275

SEAL KIT

2

BOLT NSS

3

WASHER NSS

4

RING NSS

5

CYLINDER NSS

6

SPRING NSS

7

HOUSING NSS

8

BOLT NSS

9

SPRING NSS

10

WASHER NSS

11

NEEDLE NSS

12

CYLINDER NSS

13

O-RING NSS

14

O-RING NSS
