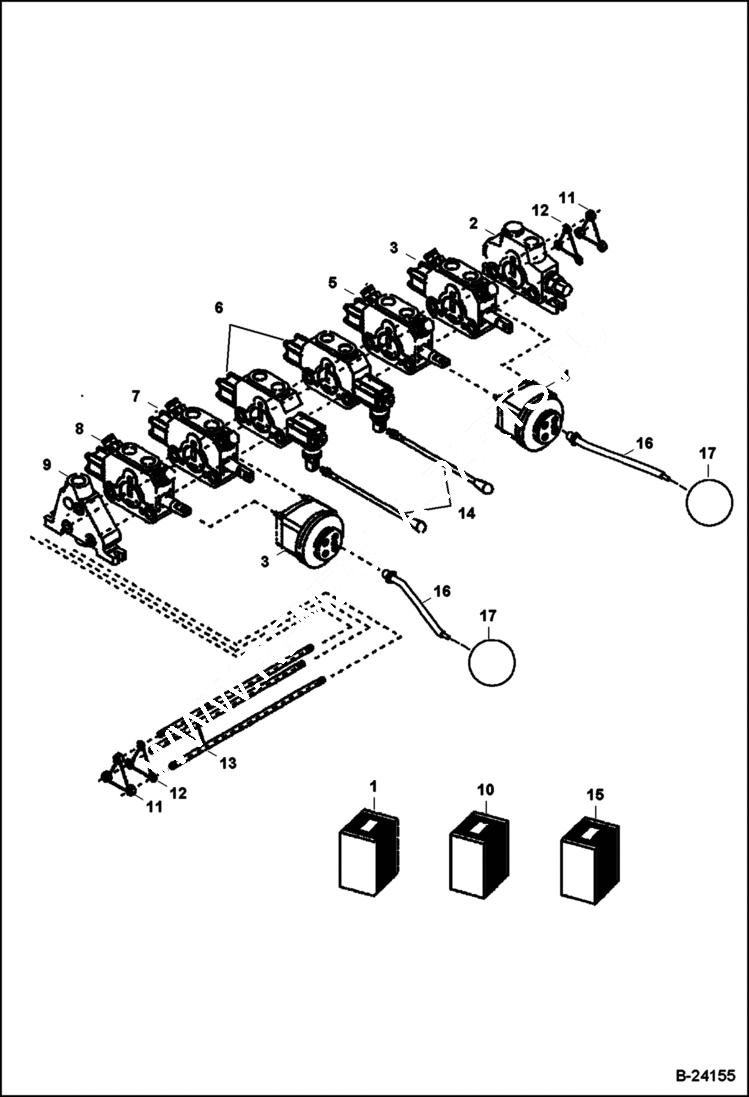

Запчасти Bobcat BL370 HYDRAULIC CIRCUITRY (Backhoe Control Valve) HYDRAULIC SYSTEM

1

6973810

DISTRIBUTOR REAR Ref. 2-9, 13

2

6969764

INLET SECTION

3

6969765

WORKING SECTION

4

6682356

KIT Was 6969492 - A

5

6969766

WORKING SECTION

6

6969494

SECTION

7

6969767

WORKING SECTION

8

6969497

SECTION

9

6969498

SECTION

10

6969499

KIT Ref. 11-13

11

NUT NLA

12

WASHER NLA

13

BOLT NLA

14

6969488

LEVER

15

6969768

SEAL KIT for all distributors

16

6960738

CONTROL VALVE lever

17

6960754

KNOB
