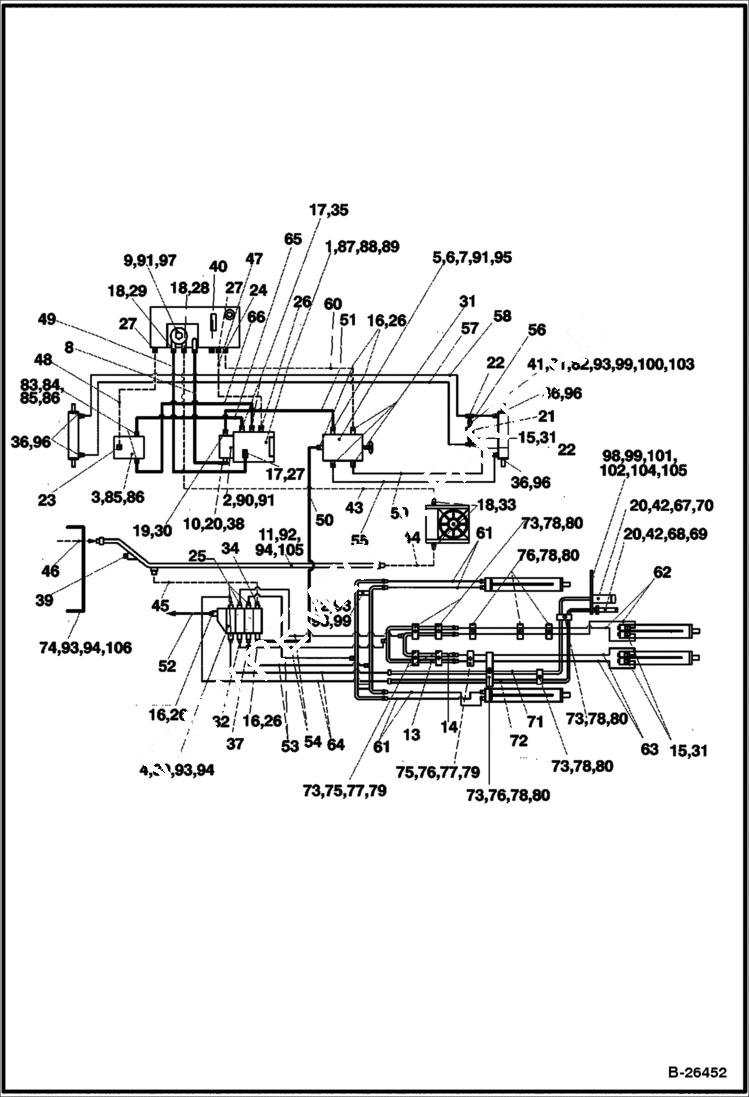

Запчасти Bobcat BL470 HYDRAULIC CIRCUITRY (BL470) 5705 11011 & Below (BL475) 5719 11002 & Below HYDRAULIC SYSTEM

1

6962263

PUMP, AXIAL

2

6962264

GEAR PUMP

3

6962103

MOTOR

4

6962229

DISTRIBUTOR

5

6962273

STEERING UNIT

6

VALVE NLA - Order 6961784 - Was 6961795 - A

7

6962274

STEERING COLUMN

8

6964543

HOSE

9

6960724

FILTER

10

6961993

CLAMP

11

6961994

TUBE

12

6961758

TUBE

13

6961759

TUBE

14

6961760

TUBE

15

6962101

SEAL

16

6962096

RING

17

6962815

RING

18

6961995

RING

19

6960886

O-RING

20

6960887

O-RING

21

6961762

VALVE

22

6961763

CONNECTOR

23

6961764

FITTING

24

6960733

FITTING

25

6960702

FITTING

26

6960654

FITTING

27

6960723

FITTING

28

6960721

FITTING

29

6960722

FITTING

30

6975278

FITTING 7/8'' - 14UNF - M26

31

6960703

FITTING

32

6960706

FITTING

33

6961769

FITTING

34

6961745

FITTING

35

6961996

FITTING

36

6961771

FITTING

37

6961772

FITTING

38

6961997

FITTING

39

6960877

PLUG

40

6961776

CAP

41

6961777

HOSE

42

6962389

FITTING

43

6962115

HOSE

44

6962116

HOSE

44

6962116

HOSE

45

6962117

HOSE

46

6962118

HOSE

47

6962119

HOSE

48

6962120

HOSE

49

6962121

HOSE

50

6962122

HOSE

51

6962123

HOSE

52

6962124

HOSE

53

6962125

HOSE

54

6962126

HOSE

55

6962127

HOSE

56

6962128

HOSE

57

6962129

HOSE

58

6962130

HOSE

59

6962131

HOSE

60

6962132

HOSE

61

6962133

HOSE

62

6962390

HOSE

63

6962135

HOSE

64

6962136

HOSE

65

6962019

HOSE

66

6962020

HOSE

67

6672960

COUPLER, FF FEMALE straight

68

6674688

COUPLER, FF MALE straight

69

6960671

COVER

70

6960672

COVER

71

6962391

PTO TUBE

72

6962392

PTO TUBE

73

6961934

CLAMP

74

6961808

HOLDER

75

6961809

HOLDER

76

6960756

HOLDER

77

6961810

PLATE

78

6960755

PLATE

79

1CM870

BOLT

80

1CM835

BOLT

81

6962818

NUT

82

6962099

WASHER

83

6961804

BRACE

84

6961805

O RING

85

1GM1245

BOLT

86

8EM120

WASHER

87

1CM1440

BOLT

88

8EM140

WASHER

89

6962810

WASHER

90

1GM1030

BOLT

91

6EM10

WASHER

92

1CM830

BOLT

93

6962819

WASHER

94

16DM8

NUT

95

1CM1030

BOLT

96

6975277

O-RING

97

1GM1025

BOLT

98

1CM825

BOLT Was 4CM825 - A

99

8EM80

WASHER

100

6966199

HOLDER

101

6962139

BRACKET

102

6964581

WASHER

103

1CM816

BOLT

104

6961752

NUT

105

6964631

WASHER

106

1DM8

NUT
