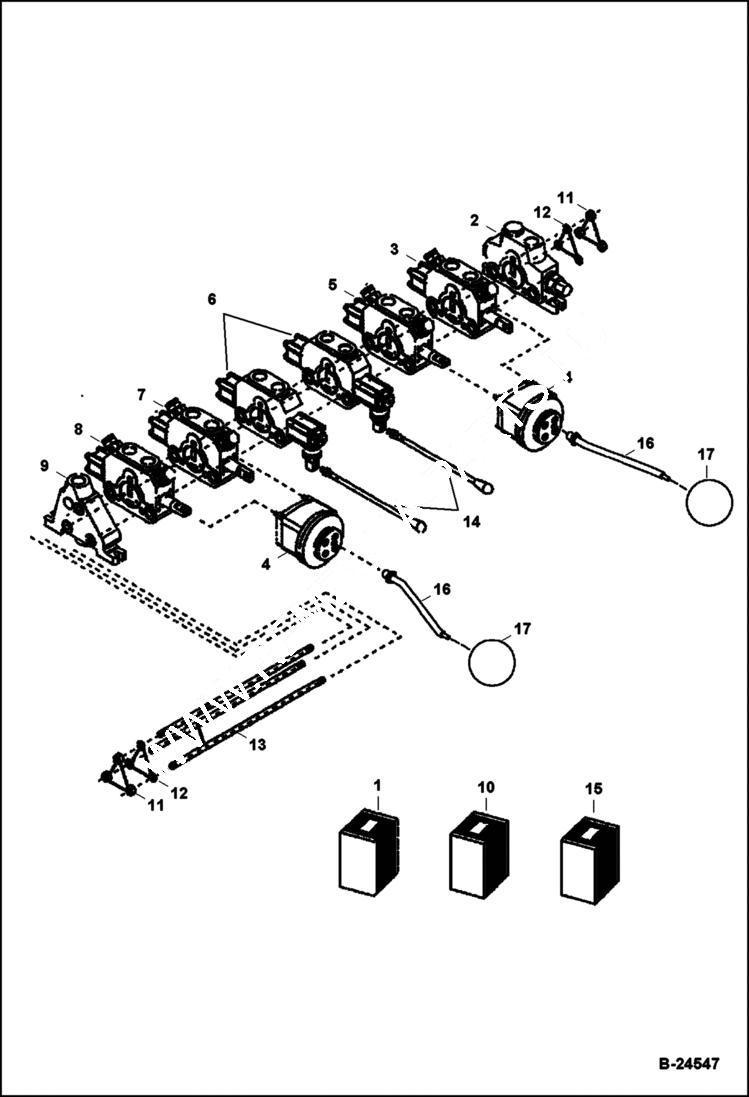

Запчасти Bobcat BL570 HYDRAULIC CIRCUITRY Rear Distributor Backhoe HYDRAULIC SYSTEM

1

6974602

DISTRIBUTOR rear - Ref. 1-9 & 1-13

2

6969490

SECTION inlet

3

6969491

SECTION working - arm

4

6682356

KIT Was 6969492 - A

5

6969493

SECTION working - bucket

6

6969494

SECTION outlet - stab.

7

6969495

SECTION working - boom

8

6969497

SECTION working - swing

9

6969498

SECTION

10

6969499

KIT Ref. 11-13

11

NUT NLA

12

WASHER NLA

13

BOLT NLA

14

6969488

LEVER

15

6969504

SEAL KIT For all distributor

16

6960738

CONTROL VALVE lever

17

6960754

KNOB
