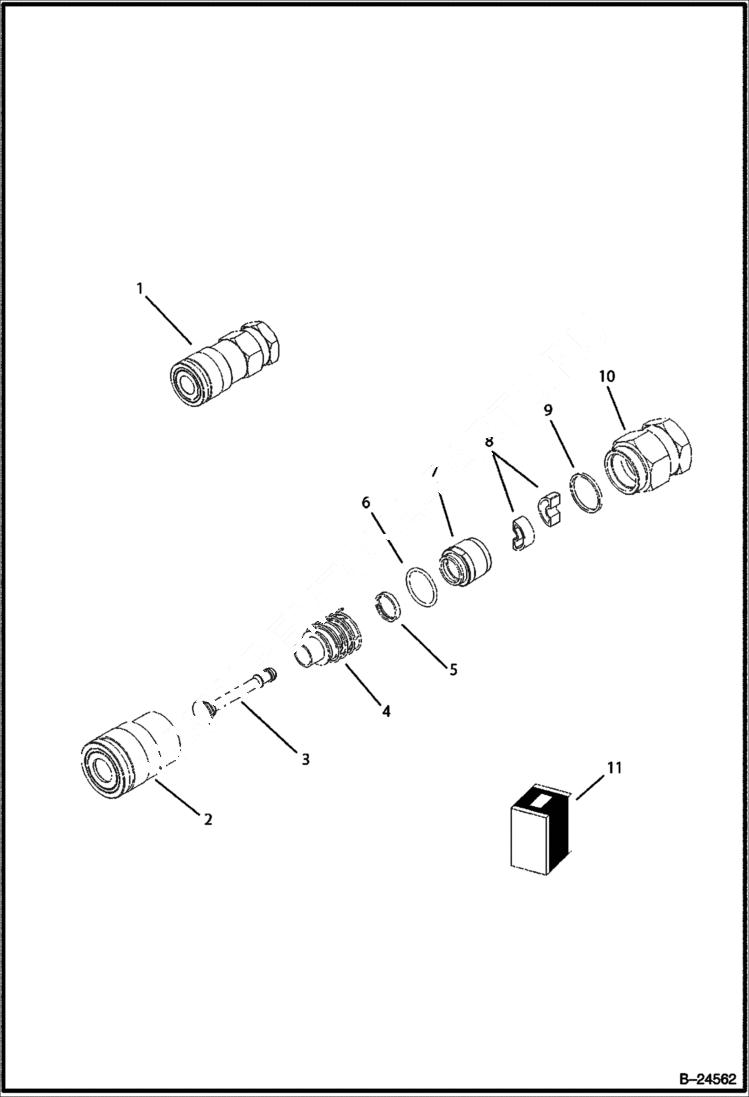

Запчасти Bobcat BL570 HYDRAULIC CIRCUITRY Coupler Female Loading Arms HYDRAULIC SYSTEM

1

6672960

COUPLER, FF FEMALE Ref. 2 - 10

2

CYLINDER NLA

3

VALVE NLA

4

SPRING NLA

5

SEAL NLA

6

O-RING NLA

7

FITTING NLA

8

HOLDER NLA

9

O-RING NLA

10

FITTING NLA

11

6969537

KIT Ref. 3, 5, 6, 8 & 9
