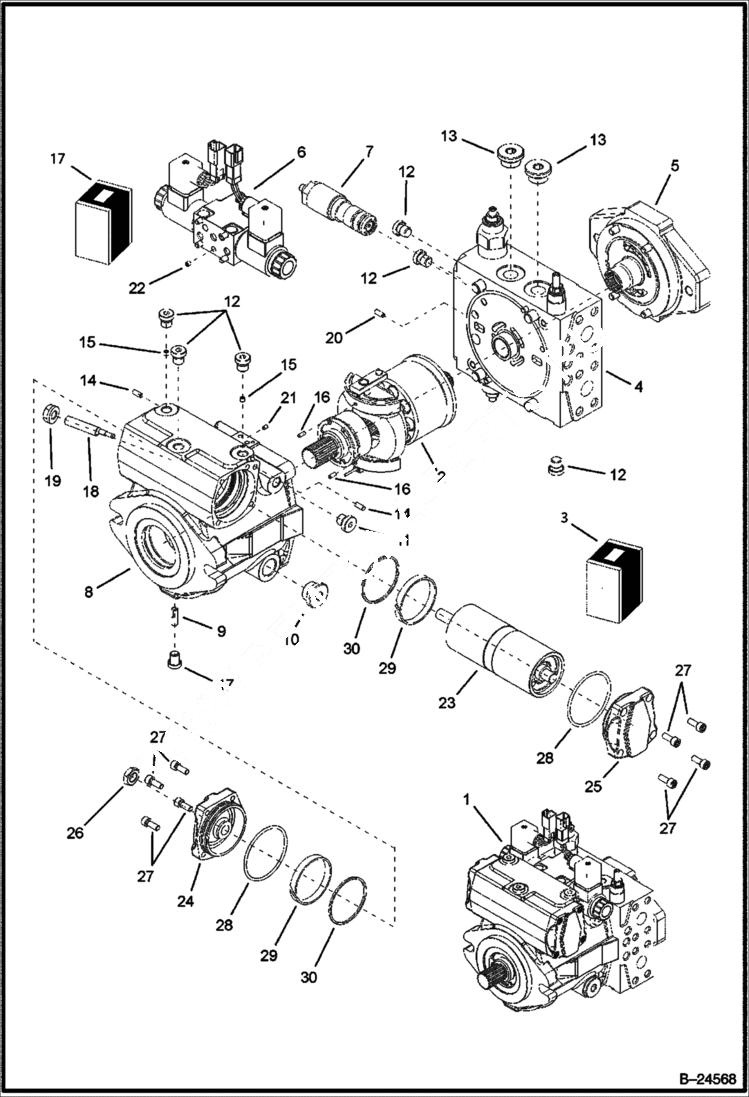

Запчасти Bobcat BL570 HYDRAULIC CIRCUITRY Axial Pump HYDRAULIC SYSTEM

1

6967332

AXIAL PUMP Ref. 2-22

2

6967408

KIT

3

6967409

KIT Ref. 23-30

4

6967410

KIT

5

6967411

KIT

6

6969285

KIT

7

6678723

DA CARTRIDGE Was 6967553 - A

8

6967413

HOUSING

9

6967414

PIN

10

6967415

SCREW

11

6967416

SCREW

12

6967417

SCREW

13

6967418

SCREW

14

6682879

PIN Was 6967581 - A

15

6967419

ORIFICE

16

6671782

PIN Was 6967582 - A

17

6682878

SCREW Was 6967420 - A

18

6967421

SCREW

19

6682882

NUT Was 6967422 - A

20

6967583

ORIFICE

21

6967584

ORIFICE

22

6967610

PIN Was 6967585 - A

23

6967448

KIT

24

6967449

COVER

25

6967450

COVER

26

6692709

NUT Was 6967425 - D

27

6967432

SCREW

28

6967433

O-RING

29

6967434

RING

30

6967435

RING
