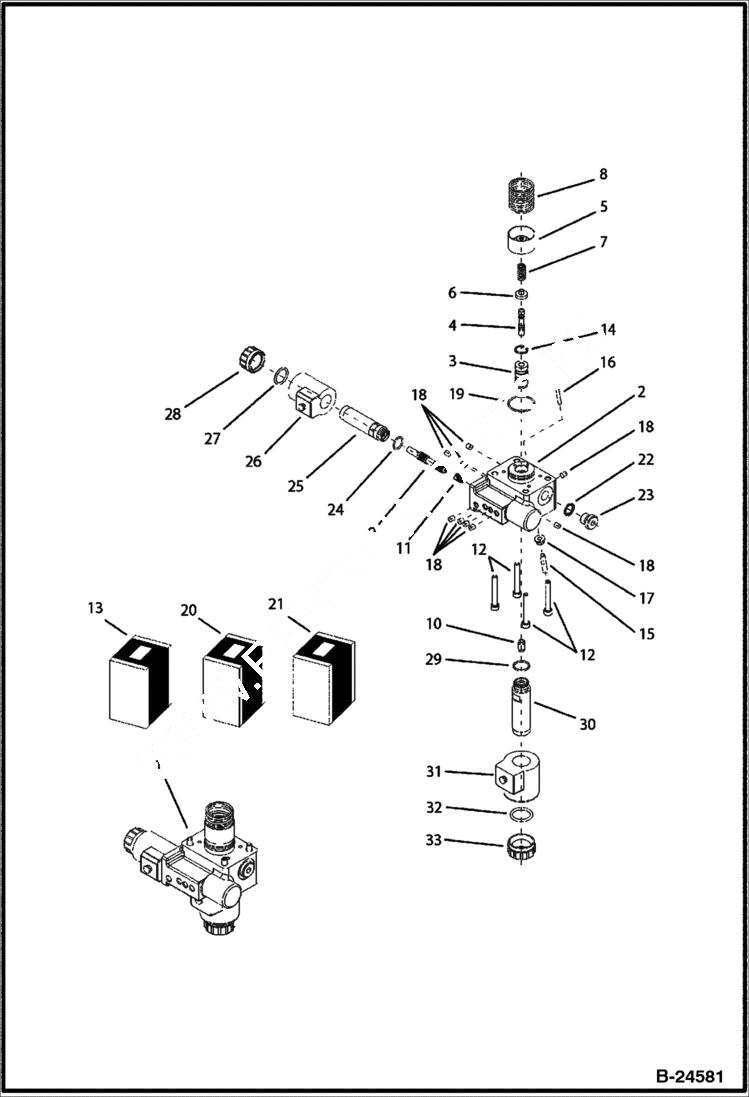

Запчасти Bobcat BL570 HYDRAULIC CIRCUITRY Hydraulic Motor HYDRAULIC SYSTEM

1

6967740

CONTROL PART Ref. 2-21

2

6967759

HOUSING

3

6967760

BUSH

4

6967761

PISTON

5

6967762

BUSHING

6

6967763

COLLAR

7

6967764

SPRING

8

6967765

SPRING

9

6967766

PISTON

10

6967767

BUSH

11

6967768

SPRING

12

6682961

SCREW Was 6967769 - A

13

6967795

SCREW Ref. 22 & 23 - Was 6967770 - A

14

6967771

RING

15

6967772

PIN

16

6967773

PIN

17

6967774

NUT

18

6967775

PIN

19

6967776

O-RING

20

6969289

SOLENOID Ref. 29-33

21

6969290

SOLENOID Ref. 24-28

22

SEAL NLA

23

PLUG NLA

24

O-RING NLA

25

ROD NLA

26

SOLENOID NLA

27

O-RING NLA

28

NUT NLA

29

O-RING NLA

30

ROD NLA

31

SOLENOID NLA

32

O-RING NLA

33

NUT NLA
