HYDRAULIC CIRCUITRY Frame

Запчасти Bobcat BL570 HYDRAULIC CIRCUITRY Frame HYDRAULIC SYSTEM

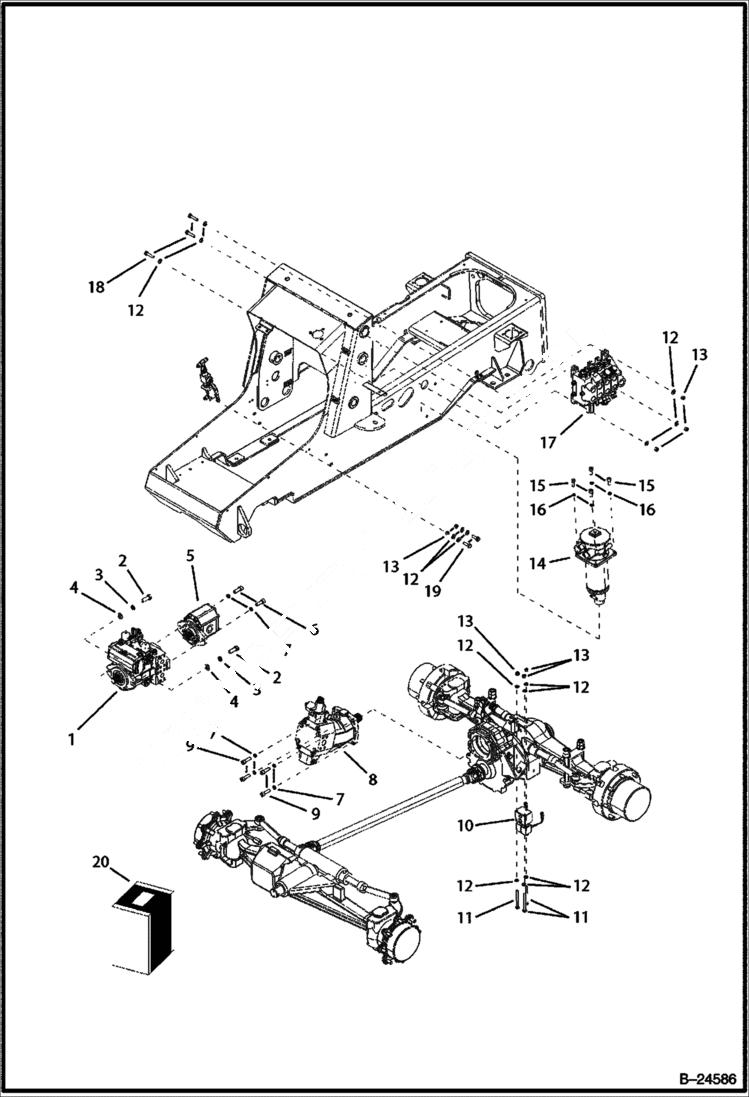

Схема запчастей Bobcat BL570 - HYDRAULIC CIRCUITRY Frame HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6967332

AXIAL PUMP

2

1CM1440

BOLT

3

6962810

WASHER

4

8EM140

WASHER

5

6974603

GEAR PUMP

6

1GM1235

BOLT

7

8EM120

WASHER

8

6967331

MOTOR hydraulic

9

1GM1245

BOLT

10

6966820

VALVE

11

1CM890

BOLT

12

6962819

WASHER

13

16DM8

NUT

14

6961811

FILTER

15

1GM1025

BOLT

16

6EM10

WASHER

17

6974601

DISTRIBUTOR

18

1CM835

BOLT

19

1CM816

BOLT Was 4CM816 - A

20

6969567

SEAL KIT For all gear pump
